Four Speed Shift Linkage Adjust

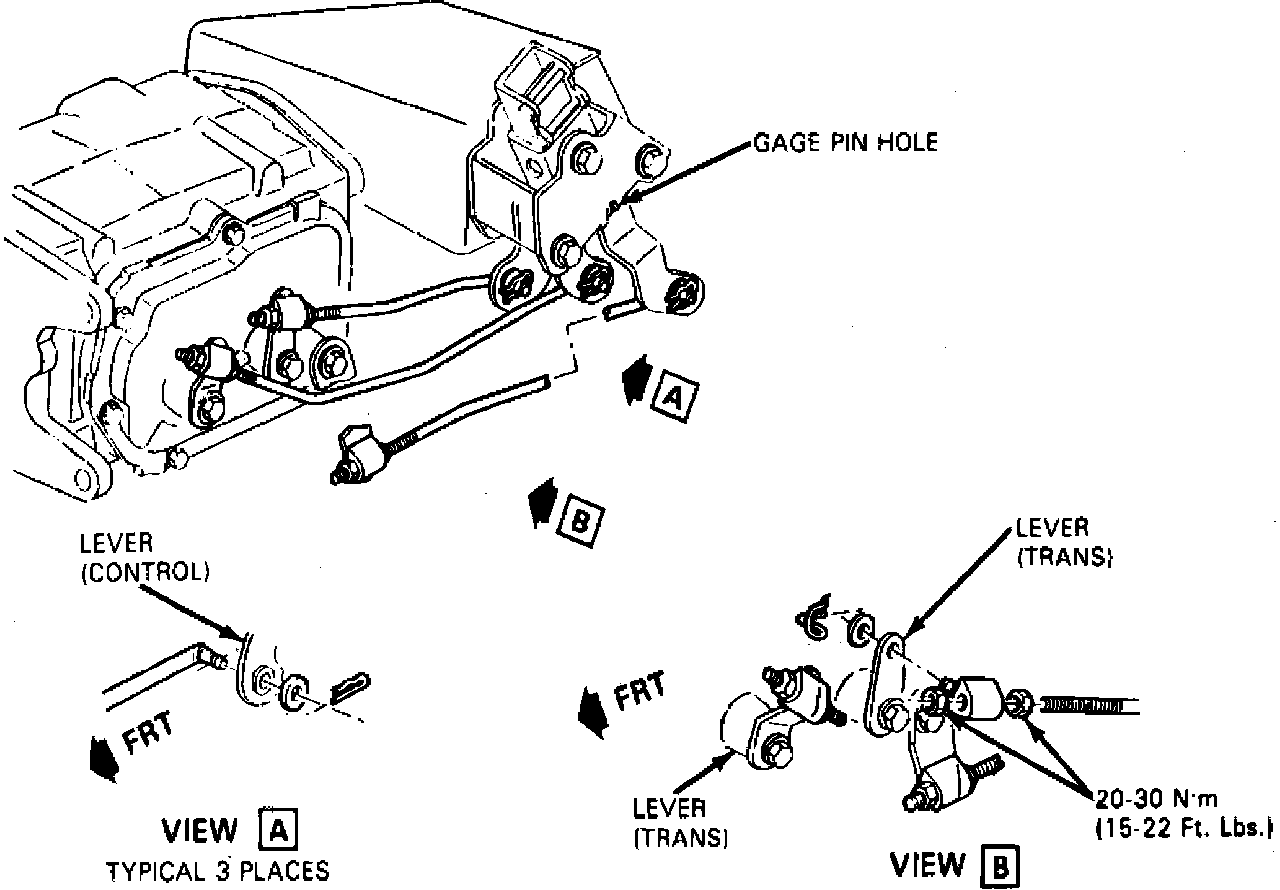

Fig. 7 4-speed shift linkage adjustment:

Transmission and shifter levers must be in Neutral position at time of rod assembly. A 1/4 inch gage pin must fit freely into gage pin hole when levers are positioned as outlined above, Fig. 7.
