Home >> GMC >> 1986 >> Safari Van M V6-262 4.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Diagrams >> MUNCIE 4 (117MM) Speed

MUNCIE 4 (117MM) Speed

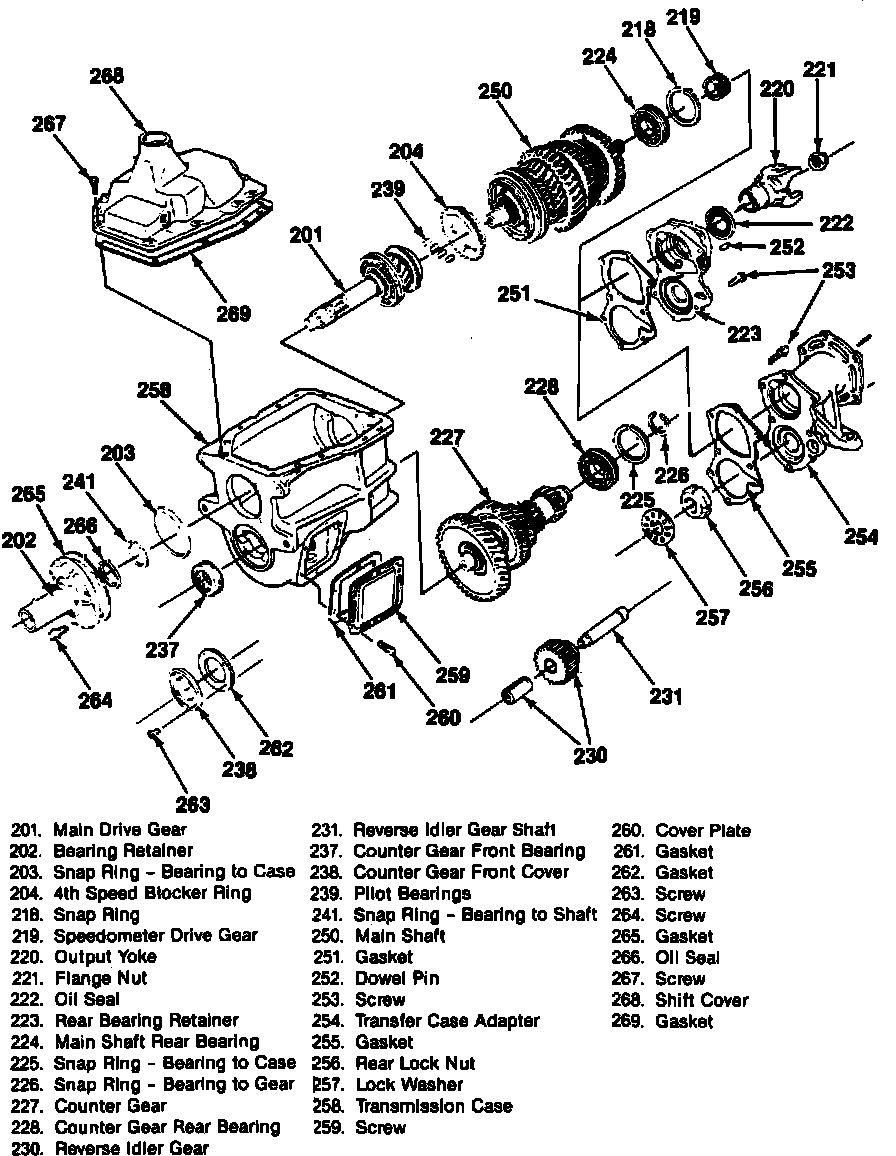

Fig. 1 Exploded View Of Transmission:
