Home >> GMC >> 1986 >> Safari Van M V6-262 4.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> 4L60 (700-R4) Automatic Transmission - Check Ball Locations >> Valve Body Checkballs

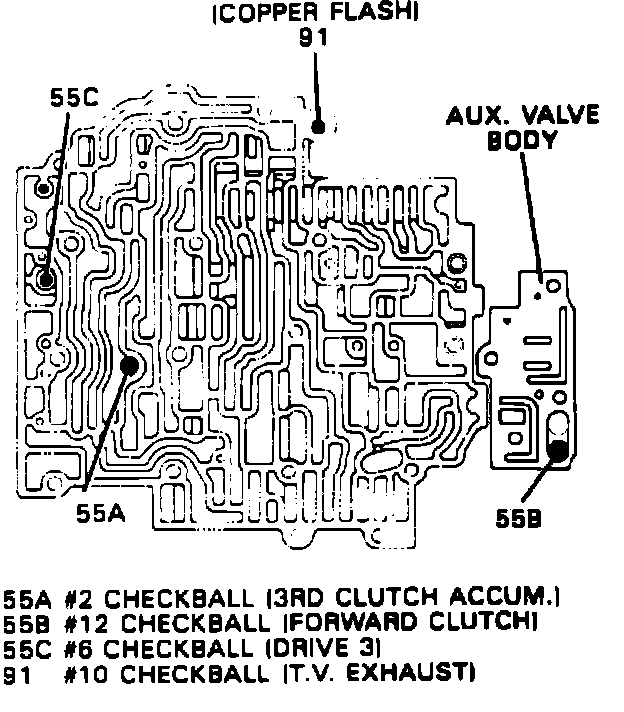

Valve Body Checkballs

Control Valve Body Checkballs:
