Rear Suspension

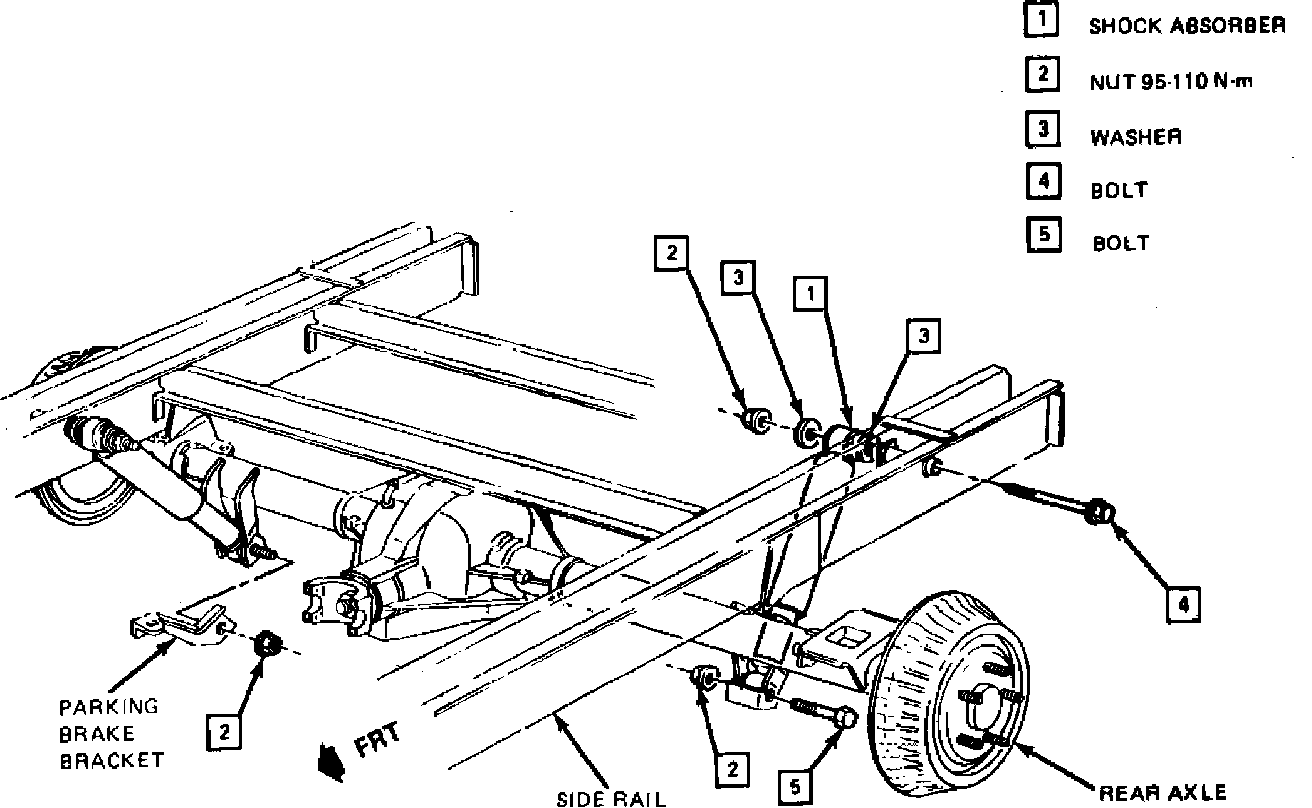

Fig. 6 Shock absorber replacement:

1. Raise vehicle and place jack stands under frame side rails.
2. Position a suitable jack under rear axle housing and raise slightly to support axle assembly.
3. Disconnect shock absorber from upper mounting, Fig. 6.
4. Disconnect shock absorber from lower mounting, then remove from vehicle.
5. Reverse procedure to install. Torque retaining nuts to 75 ft. lbs.
