Lower

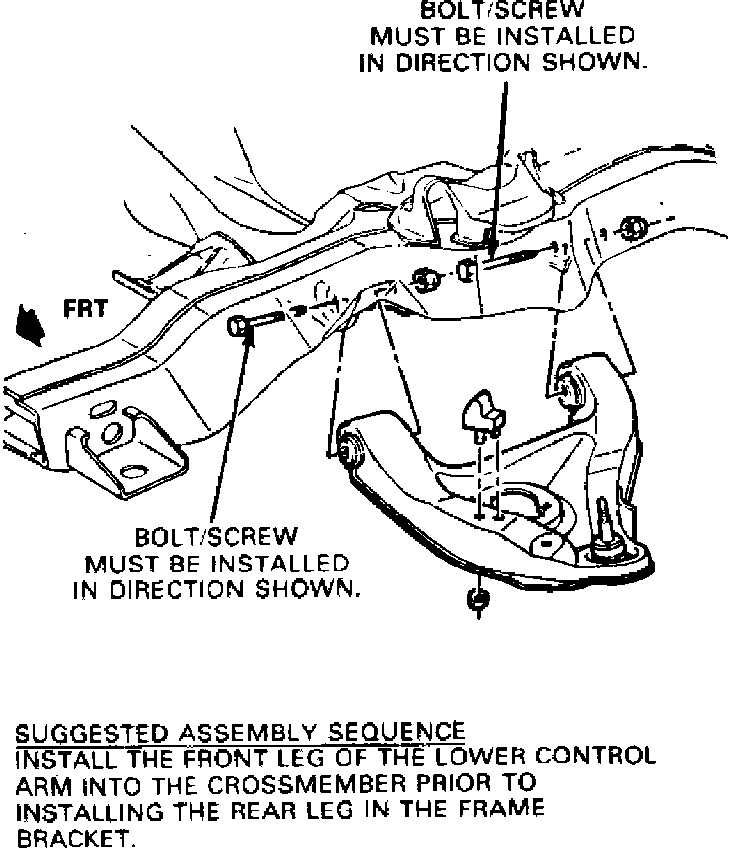

Fig. 6 Lower control arm replacement:

1. Remove coil spring as described under ``Coil Spring, Replace.''
2. Remove lower ball joint stud, then guide control arm through opening in splash shield and remove from vehicle, Fig. 6.
3. Reverse procedure to install.
