Ignition Lock Cylinder

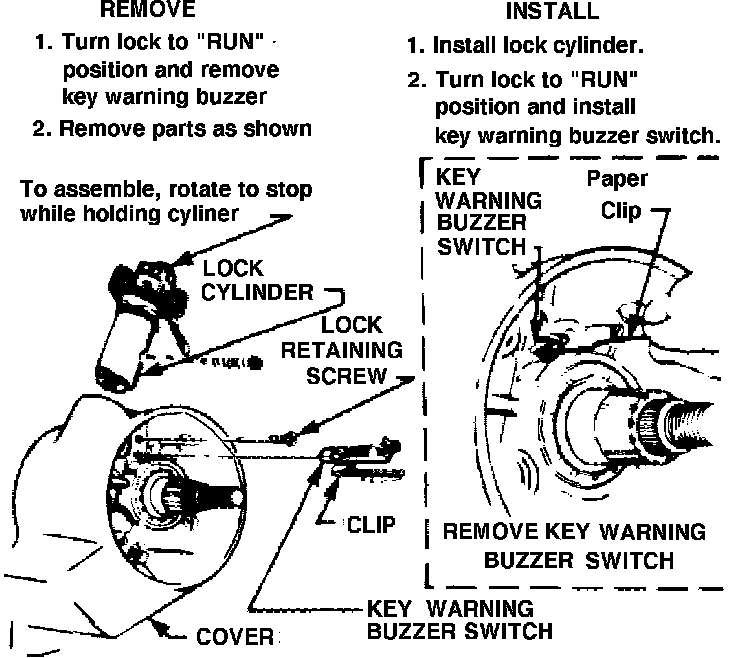

Fig. 5 Ignition lock replacement. Exc. tilt column:

Fig. 6 Ignition lock replacement. Tilt column:

1. Remove turn signal switch as described under ``Turn Signal Switch, Replace.''
2. Turn lock cylinder to Run position and remove key warning buzzer switch, if equipped.
3. Remove retaining screw and the lock cylinder, Figs. 5 and 6.
4. Reverse procedure to install. Turn lock cylinder to Run position prior to installation.
