- With Tilt Column

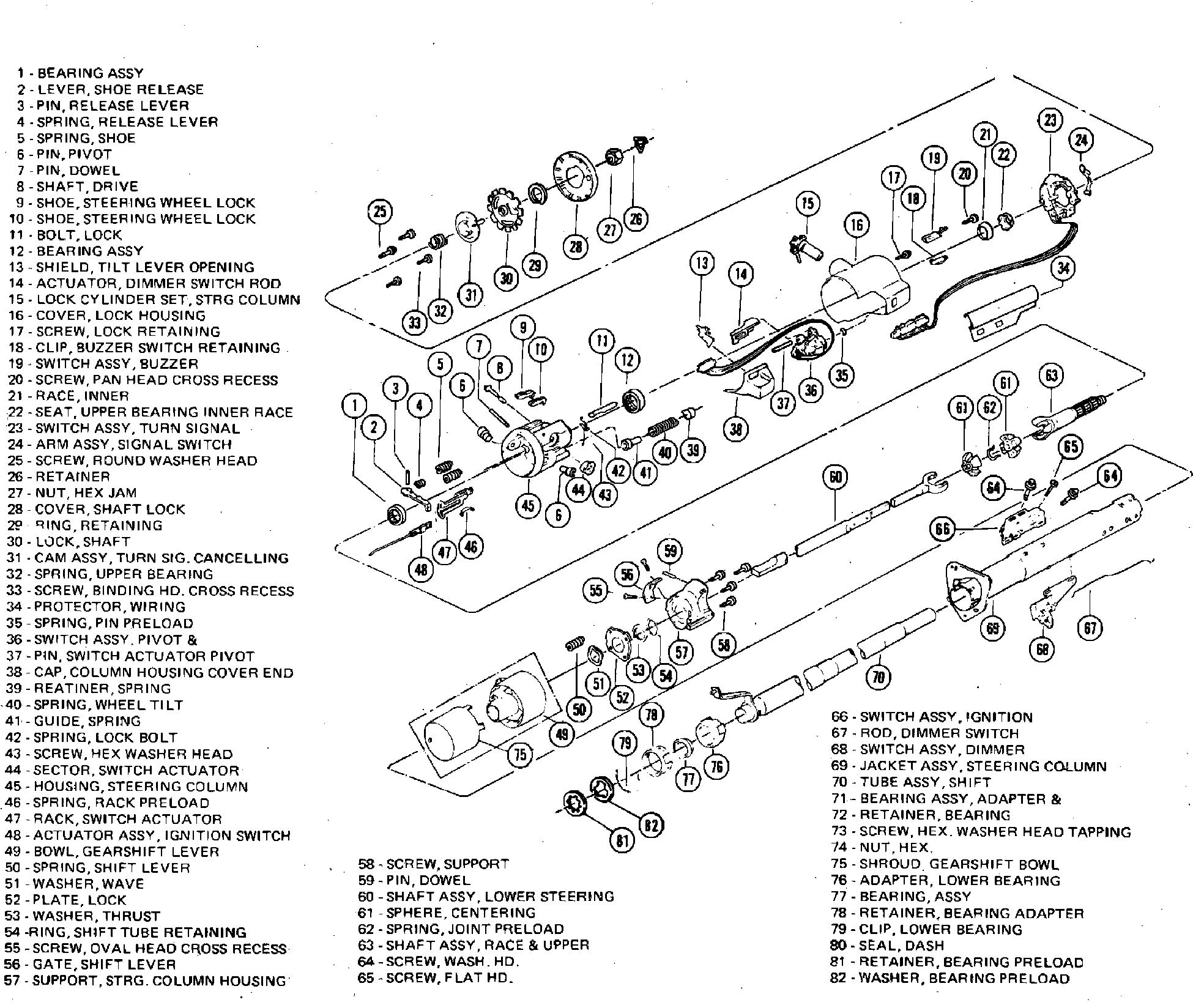

Fig. 15 Tilt steering column and components less key release. Astro Van, S/T 10-15 & Safari:

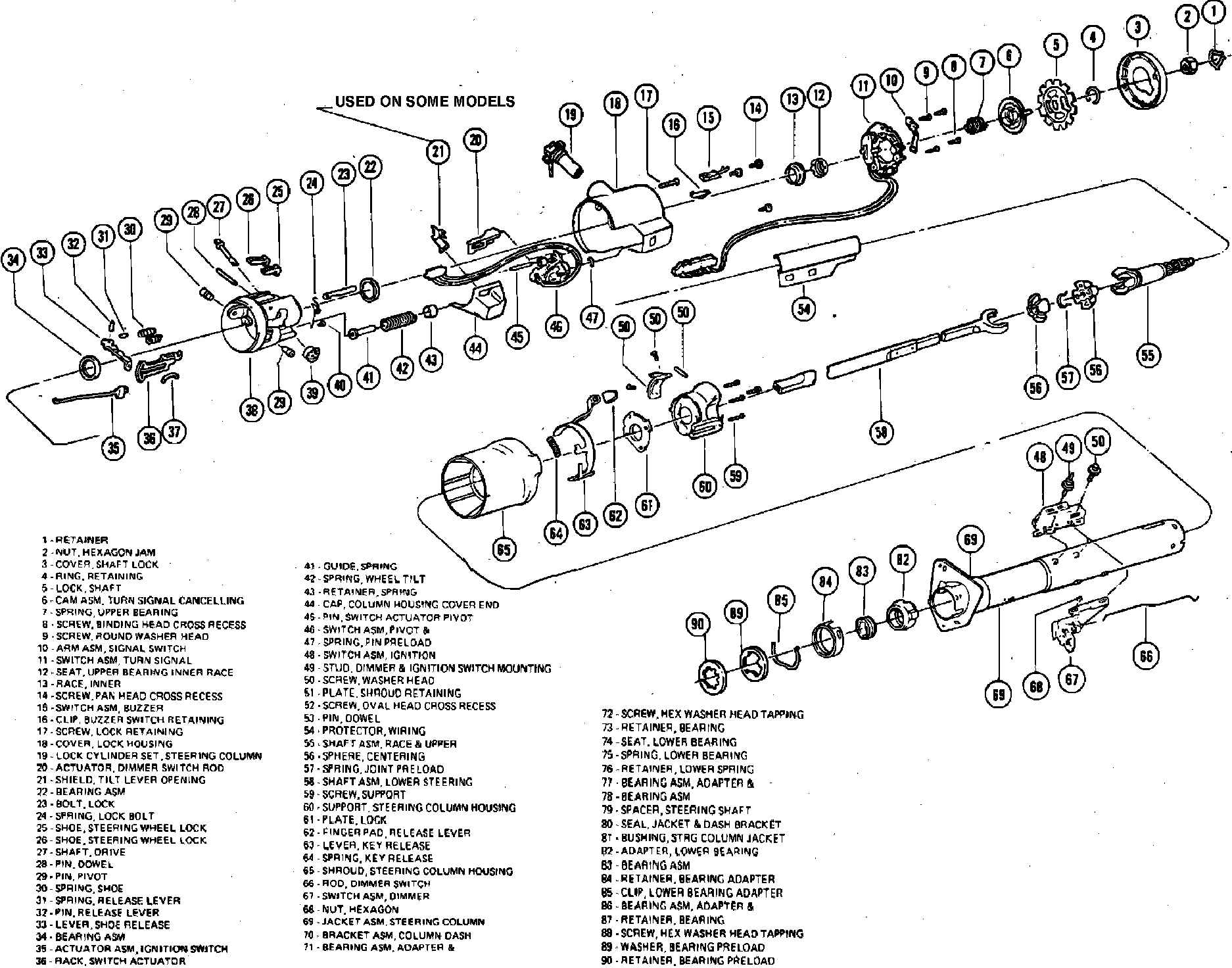

Fig. 16 Tilt steering column and components w/key release. Astro Van, S/T 10-15 & Safari:

ASTRO VAN, S/T 10-15 & SAFARI
When servicing steering column on these vehicles, refer to Figs. 15 and 16.
