System Diagnosis - Starter - Delco/Remy

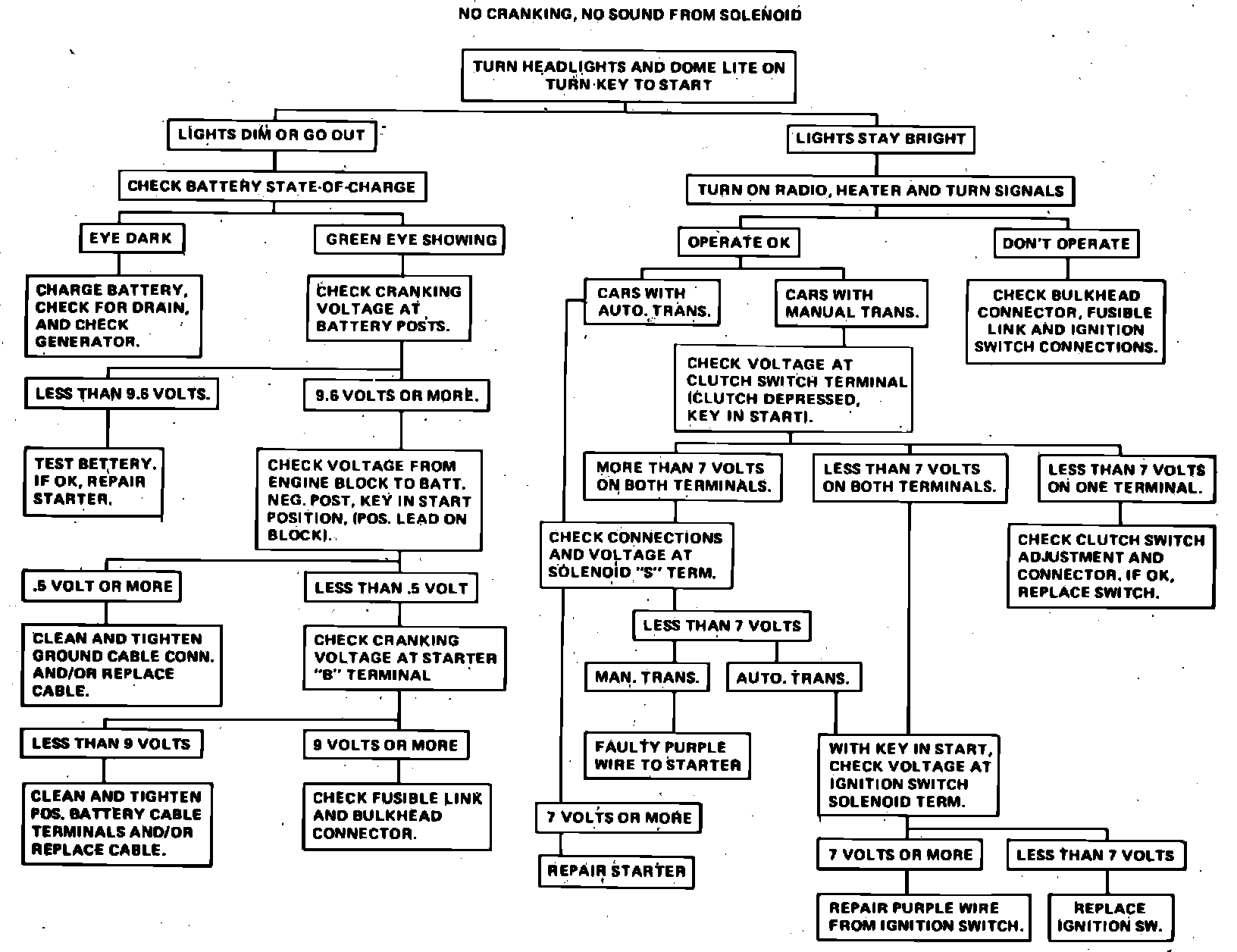

Fig. 6 Diagnosis chart (Part 1 of 2):




Fig. 6 Diagnosis chart (Part 2 of 2):





When diagnosing Delco-Remy starters refer to Fig. 6.
