System Specifications

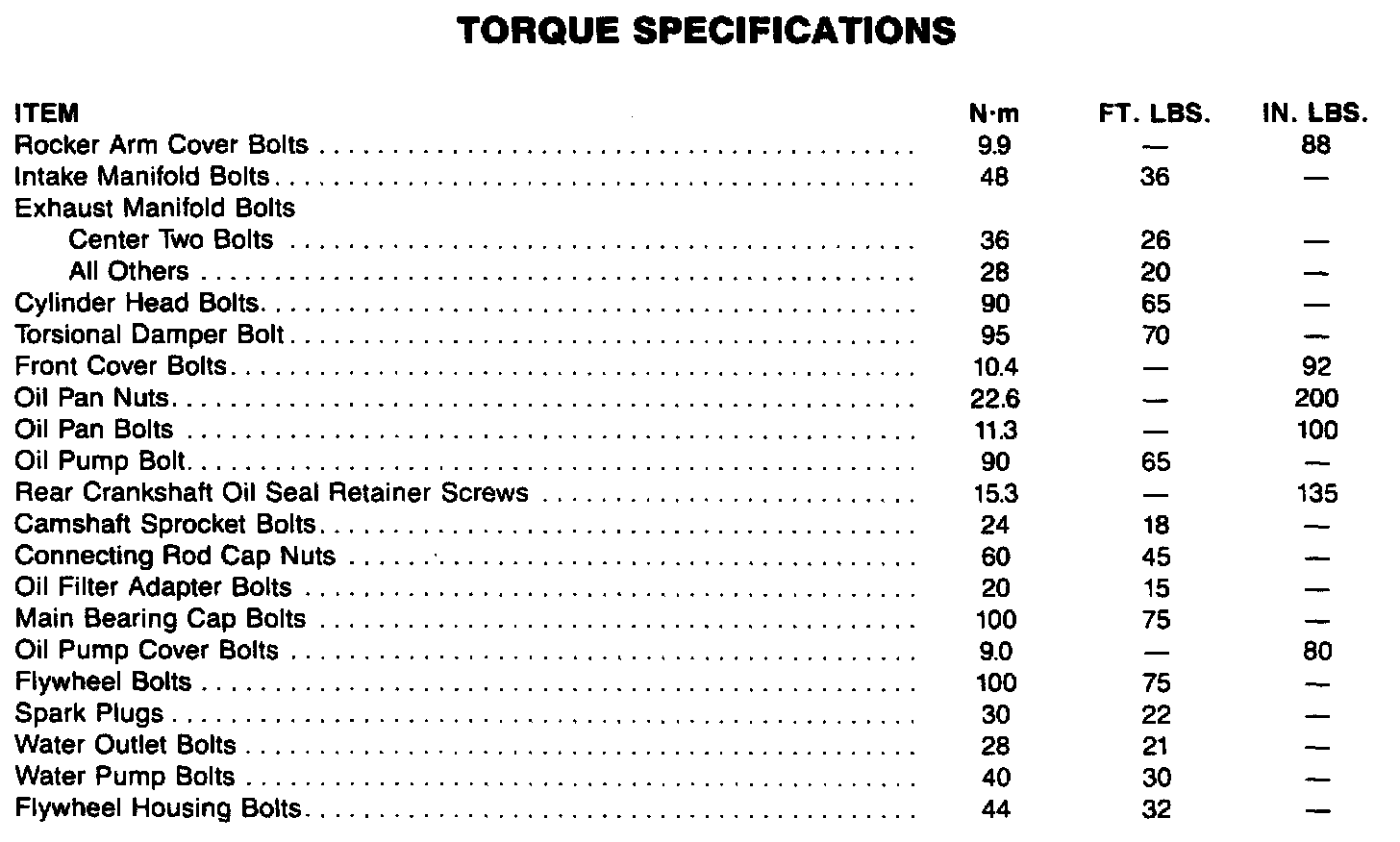

Torque Specifications:

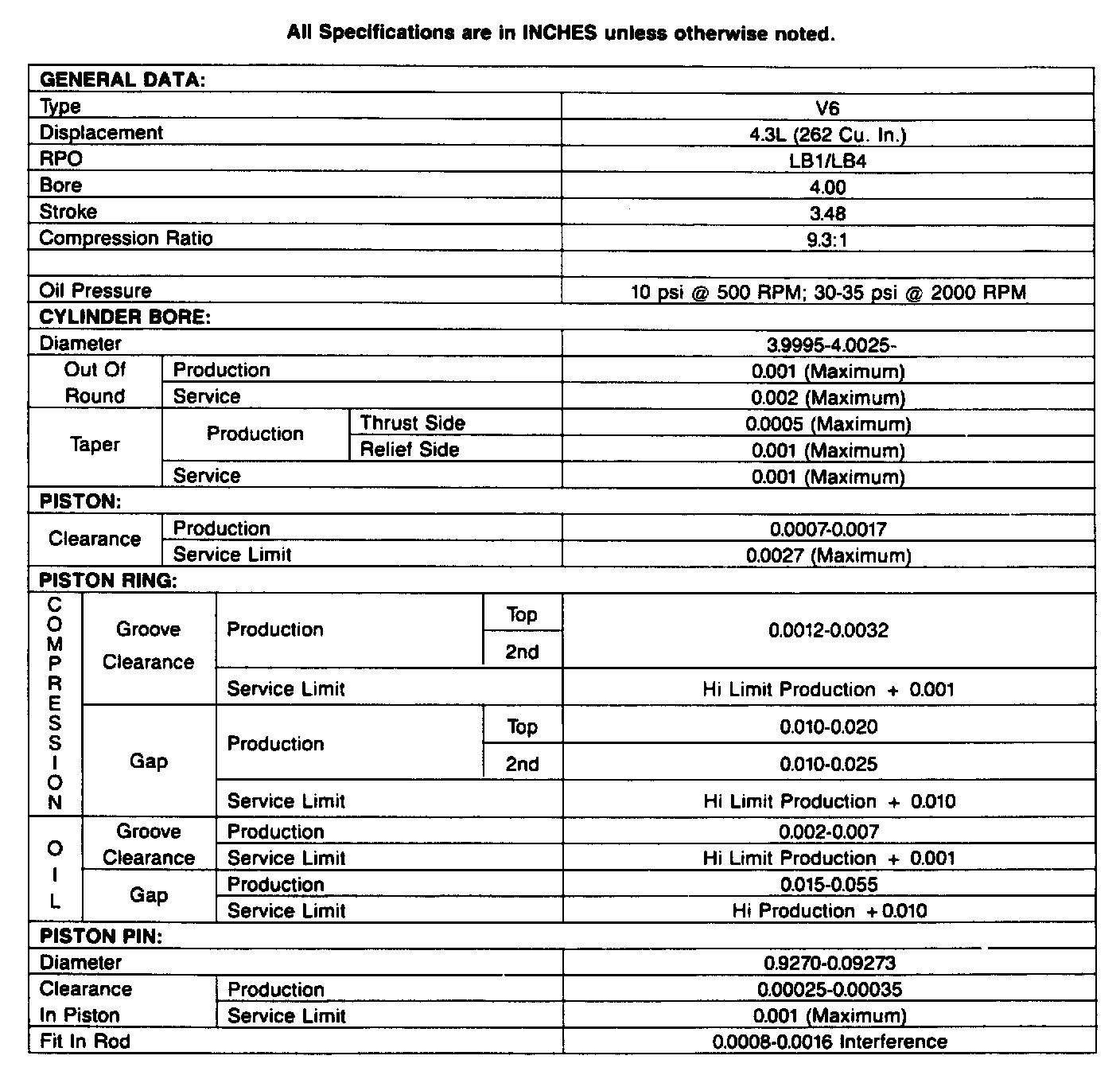

Engine Specifications (INCHES):

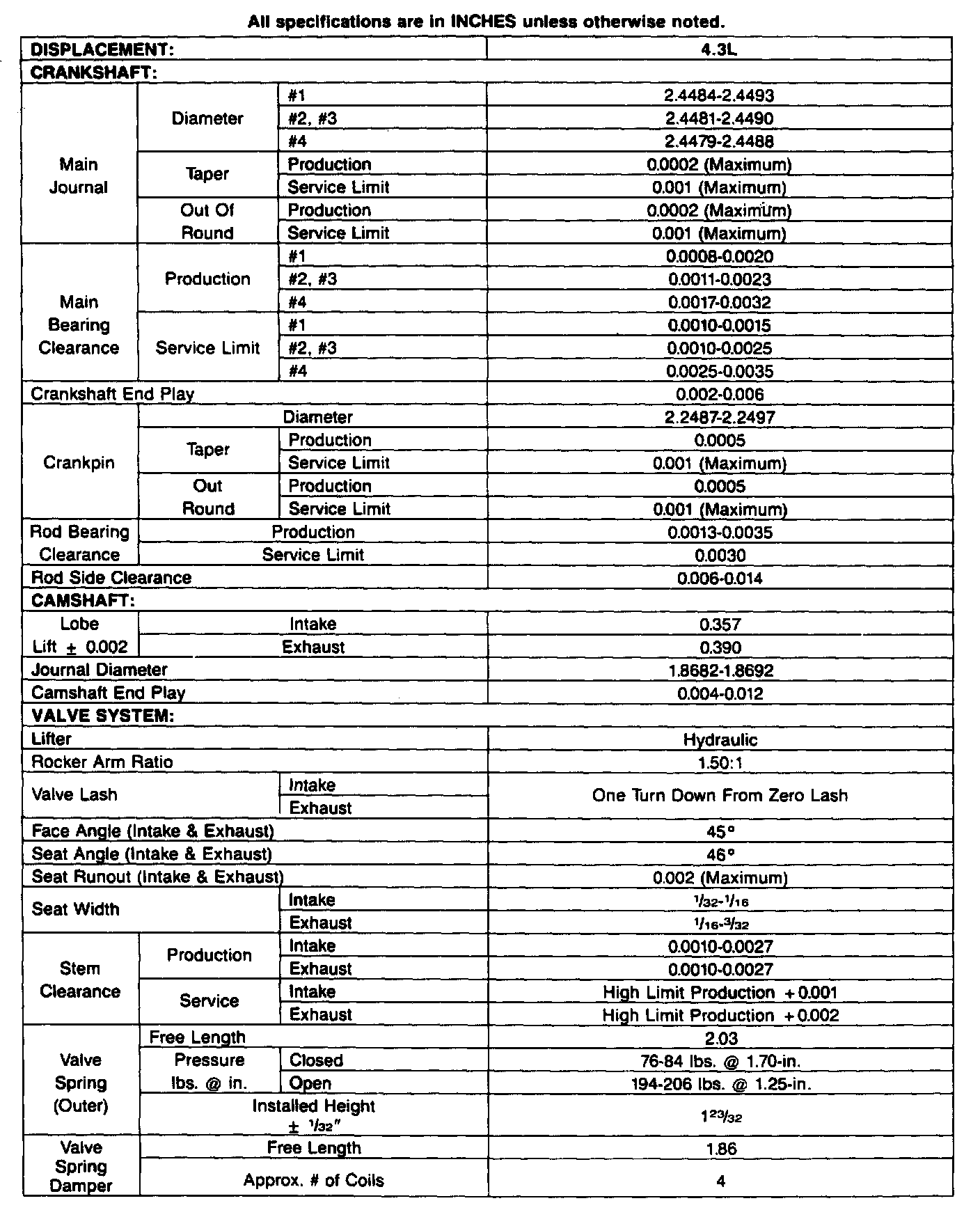

Engine Specifications (INCHES):





Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
