Air Valve Dashpot

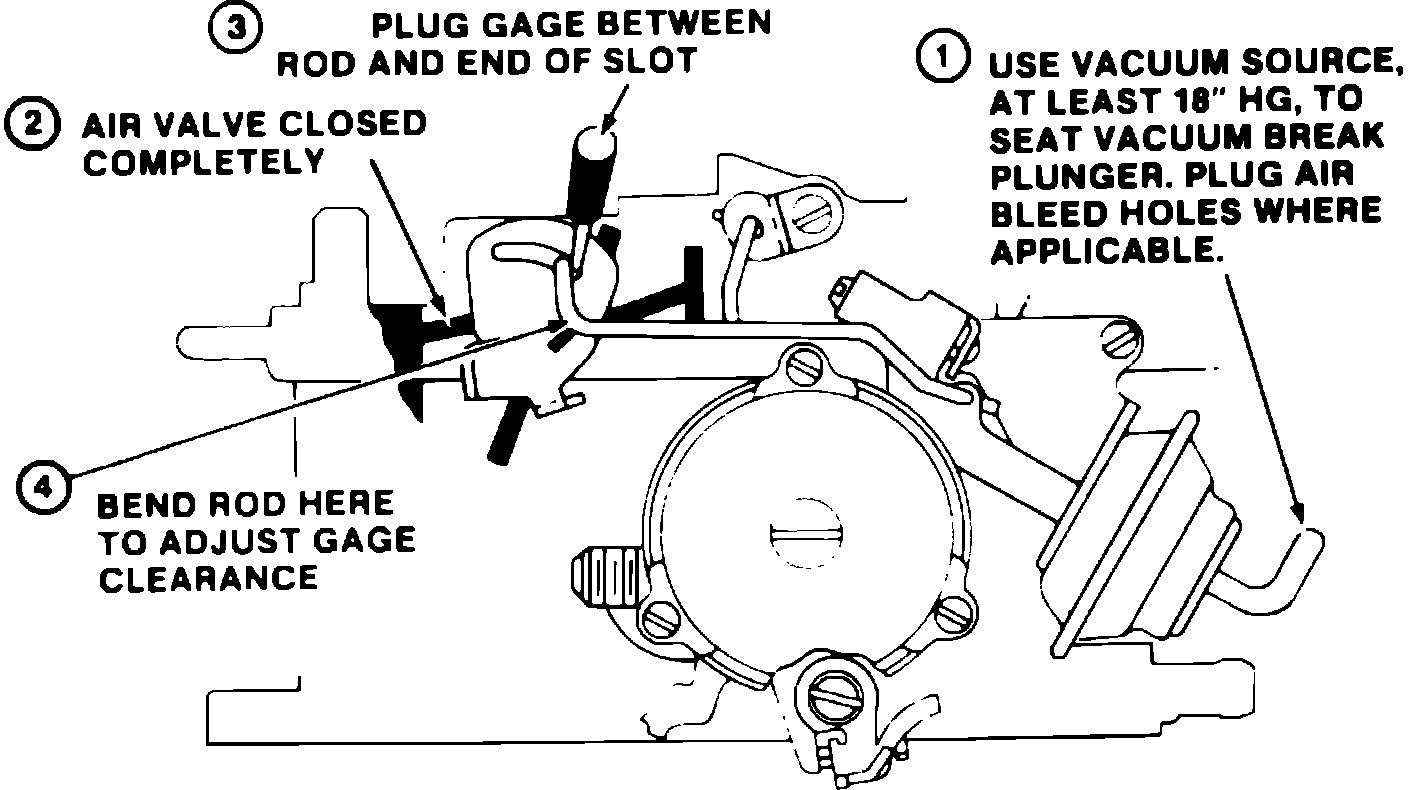

Fig. 14 Air valve dashpot adjustment:

Using an external vacuum source, seat vacuum diaphragm. With the air valve completely closed, place gauge specified in the Specifications Chart between air valve rod and end of slot in air valve lever. To adjust, bend rod at air valve end, Fig. 14.
