Choke Coil Lever

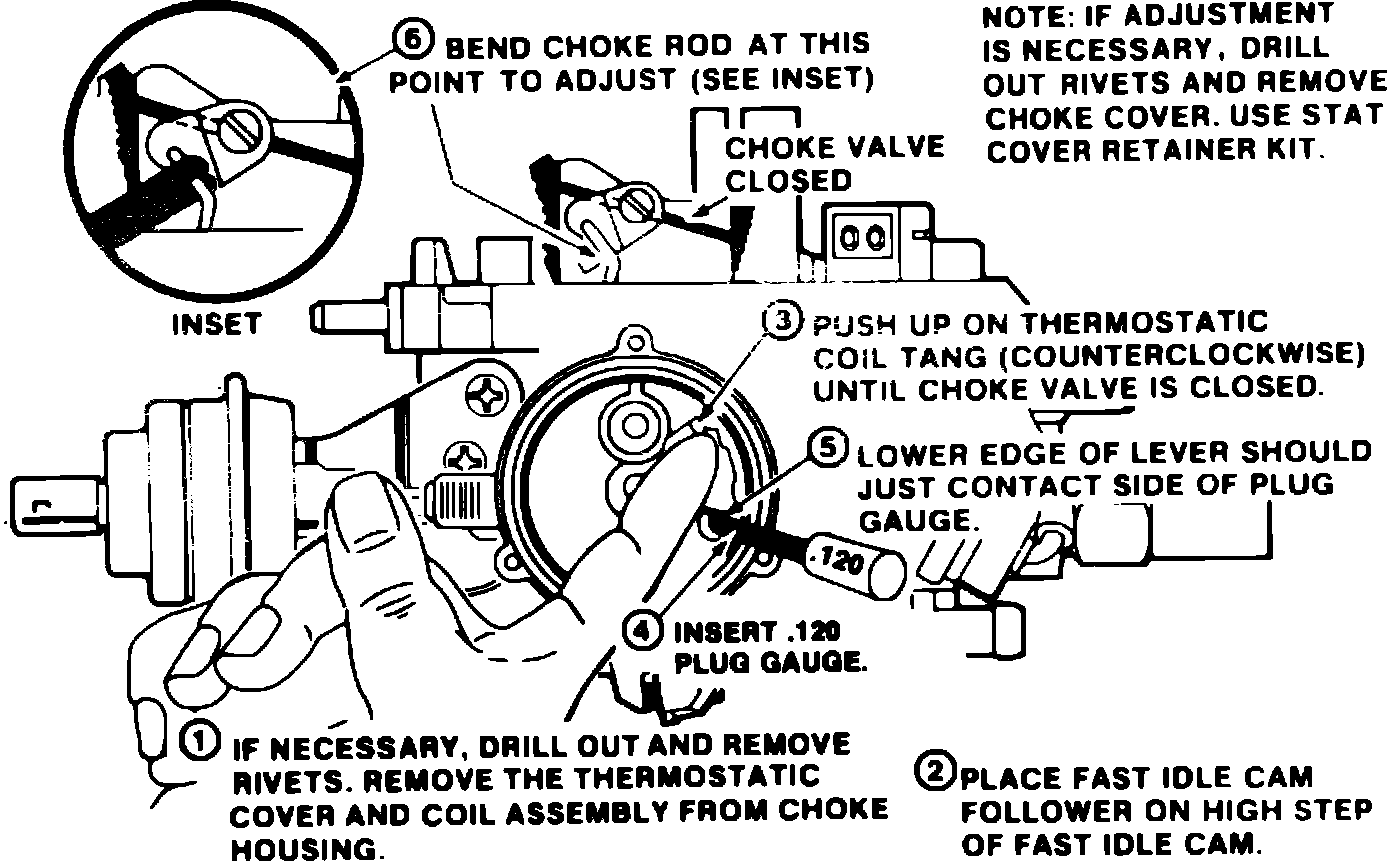

Fig. 7 Choke coil lever adjustment:

With thermostatic coil assembly removed from choke housing, push upward on coil tang to close choke valve. Insert specified gauge into hole on choke housing. The choke coil lever should contact the gauge, if not, bend choke rod to adjust, Fig. 7.
