Fig. 113 Vacuum Hose Routing

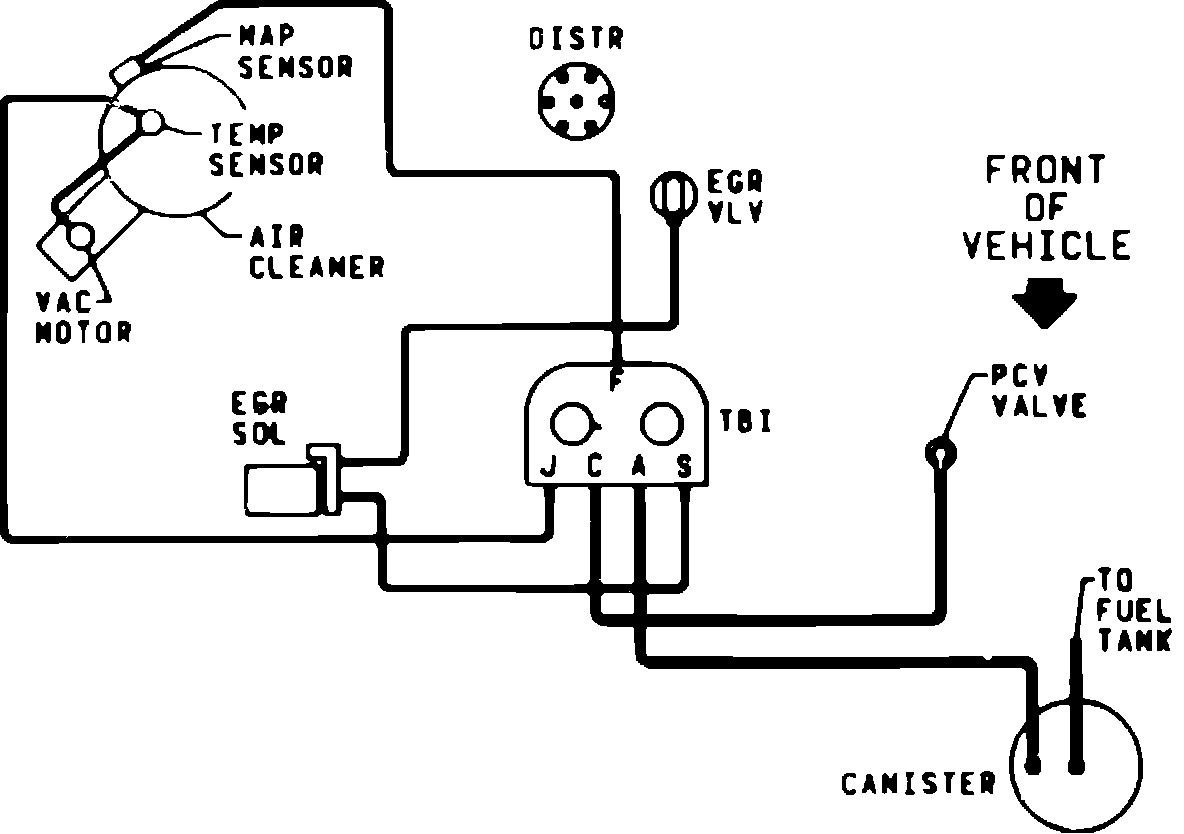

Fig. 113 Vacuum hose routing. 1986 V6-262 Astro & Safari Vans w/ auto. trans. except Calif. & high alt.:
