- Diagnosis By Symptom - High Energy Ignition (HEI) System
>>
Engine Cranks, But Will Not Start
Engine Cranks, But Will Not Start

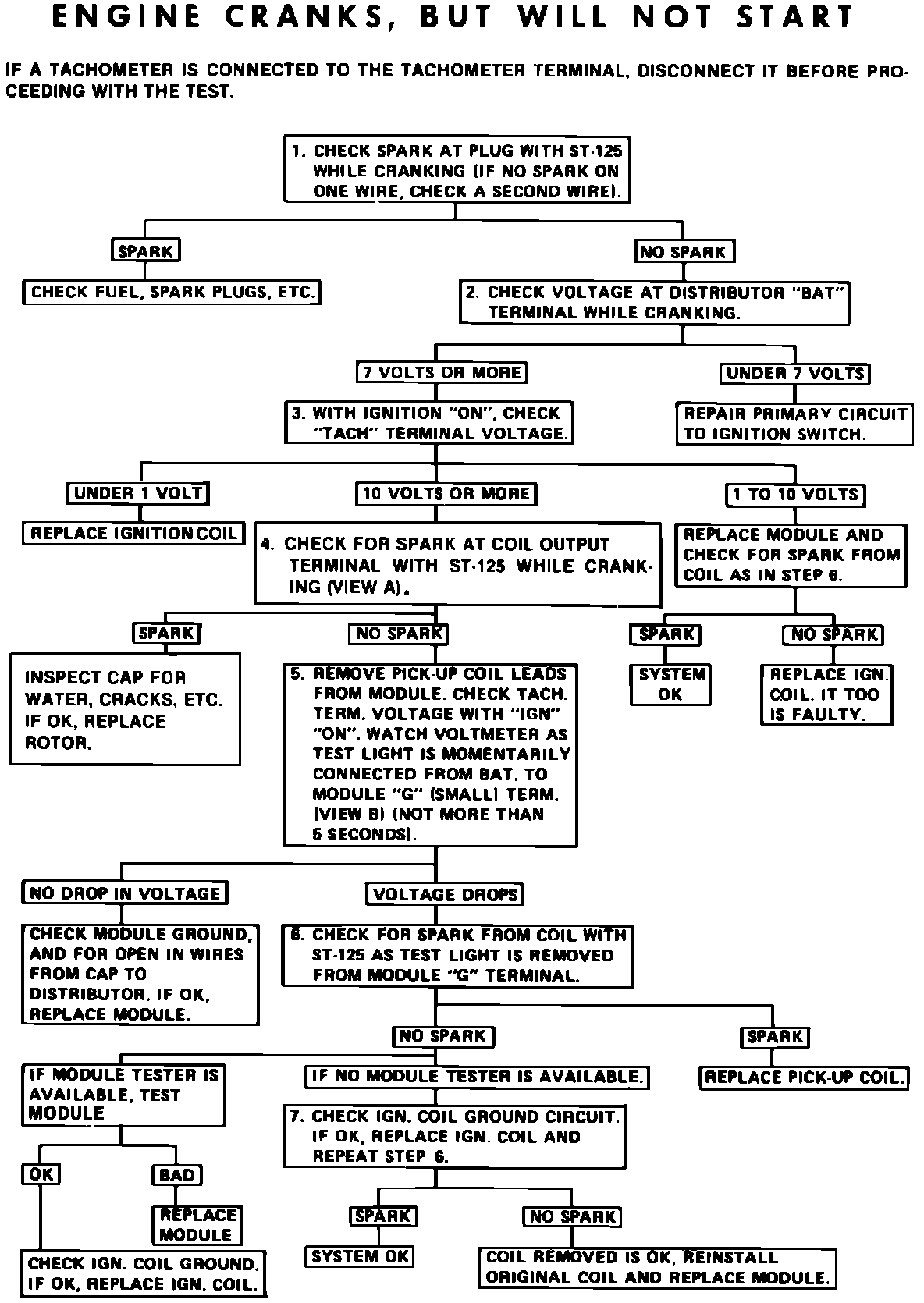

Fig. 8 High Energy Ignition (HEI) system ``No Start'' condition diagnosis:
