Backup Lamp Switch: Service and Repair

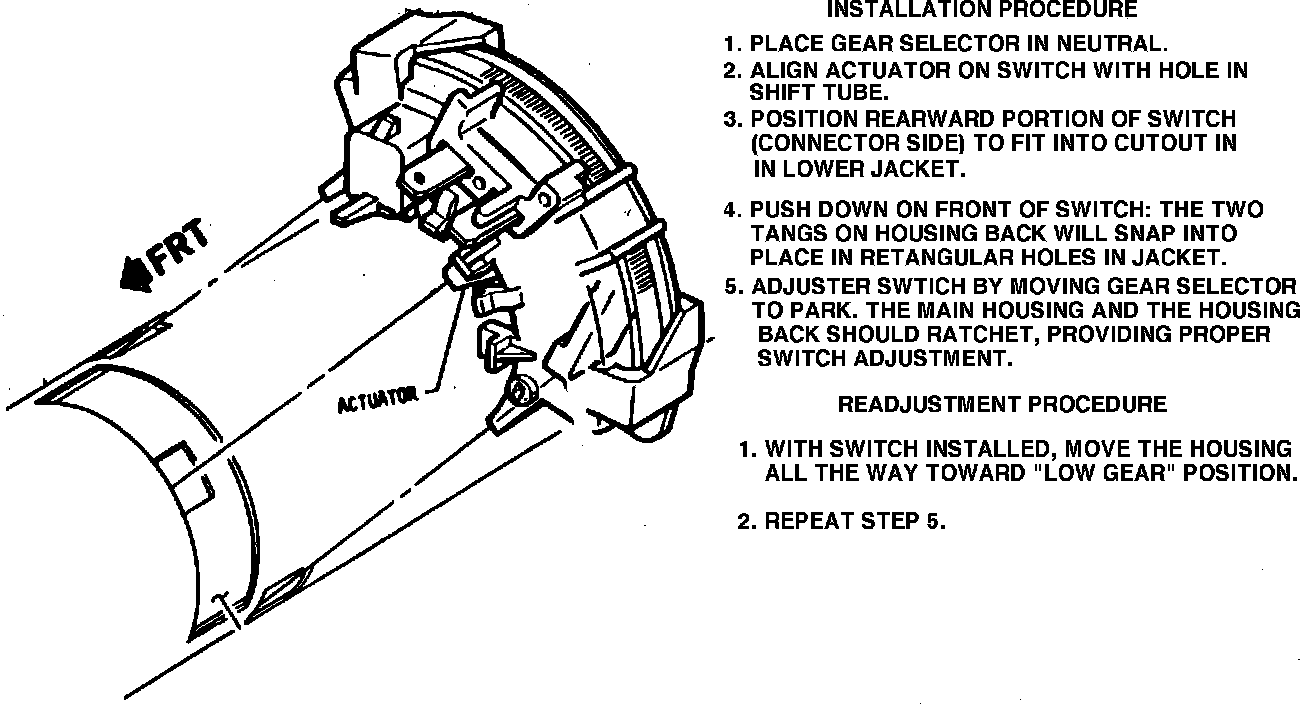

Fig. 2 Neutral start/back-up light switch replacement. Automatic transmission:

Fig. 3 Back-up Light Switch Replacement. Manual Transmission:

Refer to Fig. 2 when replacing the combination neutral start/back-up light switch on automatic transmission vehicles and Fig. 3 when replacing the back-up light switch on manual transmission vehicles.
