System Check - Cycling Clutch Orifice Tube (CCOT)

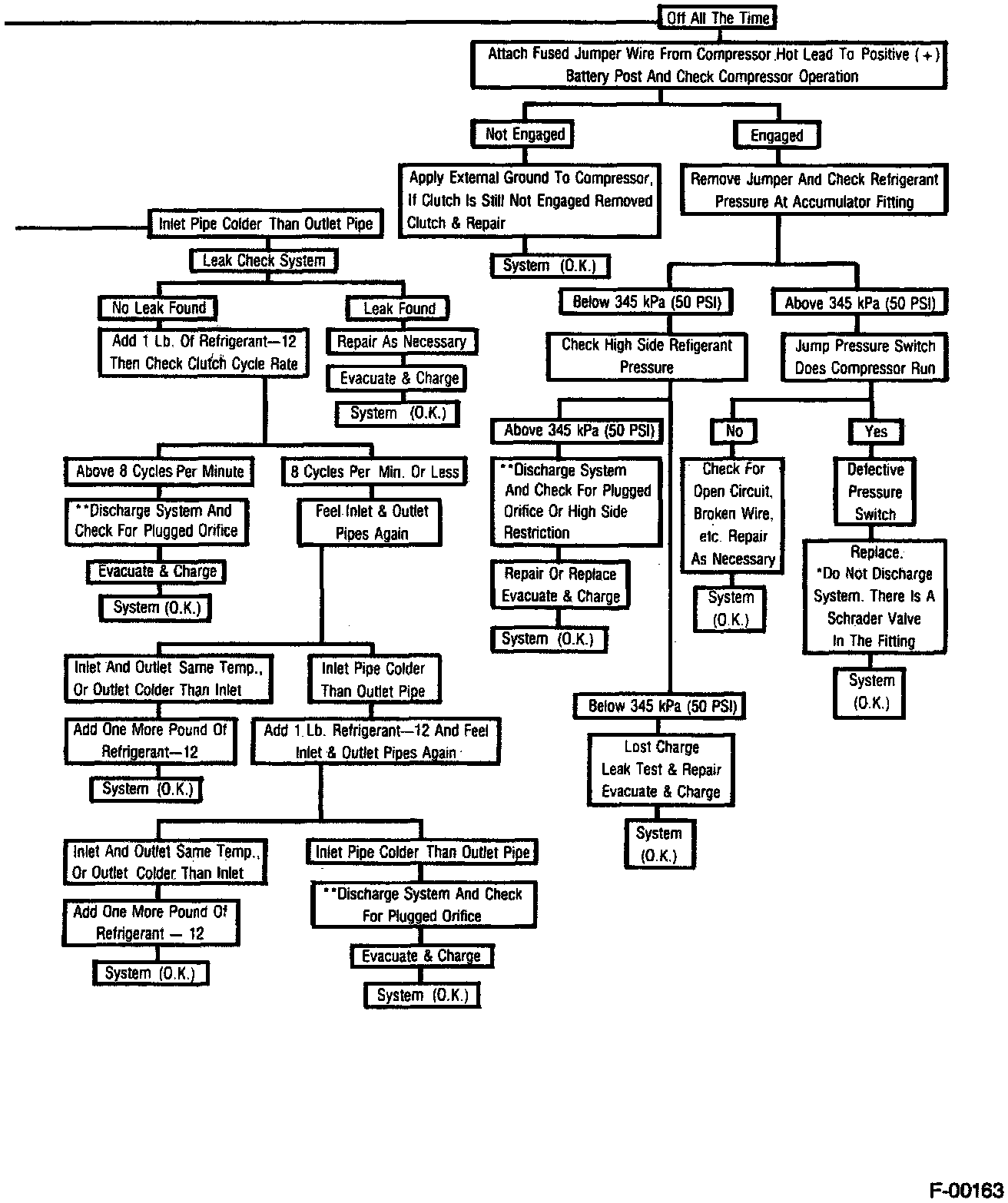

Figure 11-Pressure Cycling CCOT System Diagnosis:



Figure 12-Pressure Cycling CCOT System Diagnosis (Continued):
