System Diagnosis - Electrical System - Front

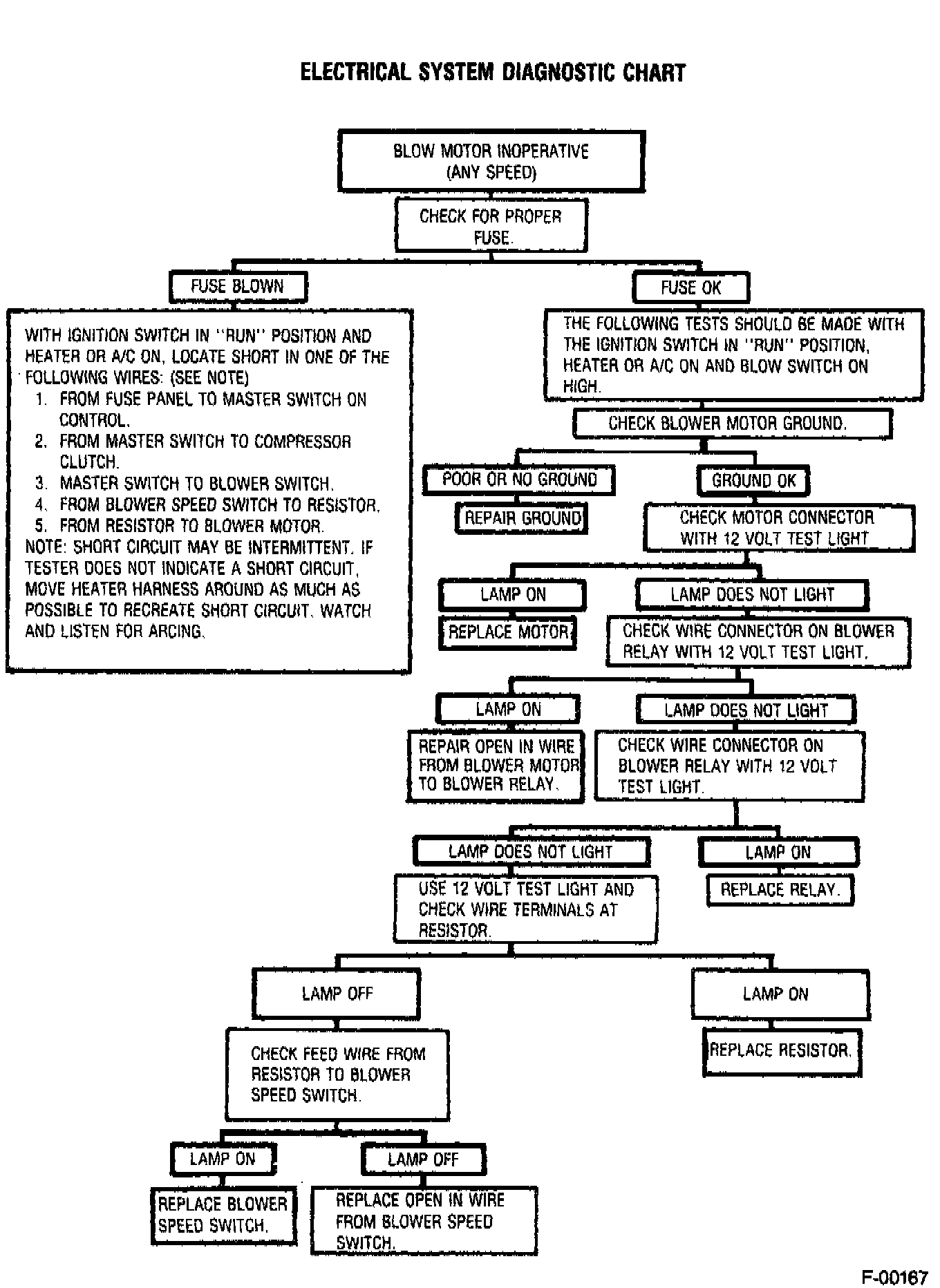

Figure 14-Electrical System Diagnosis Chart:

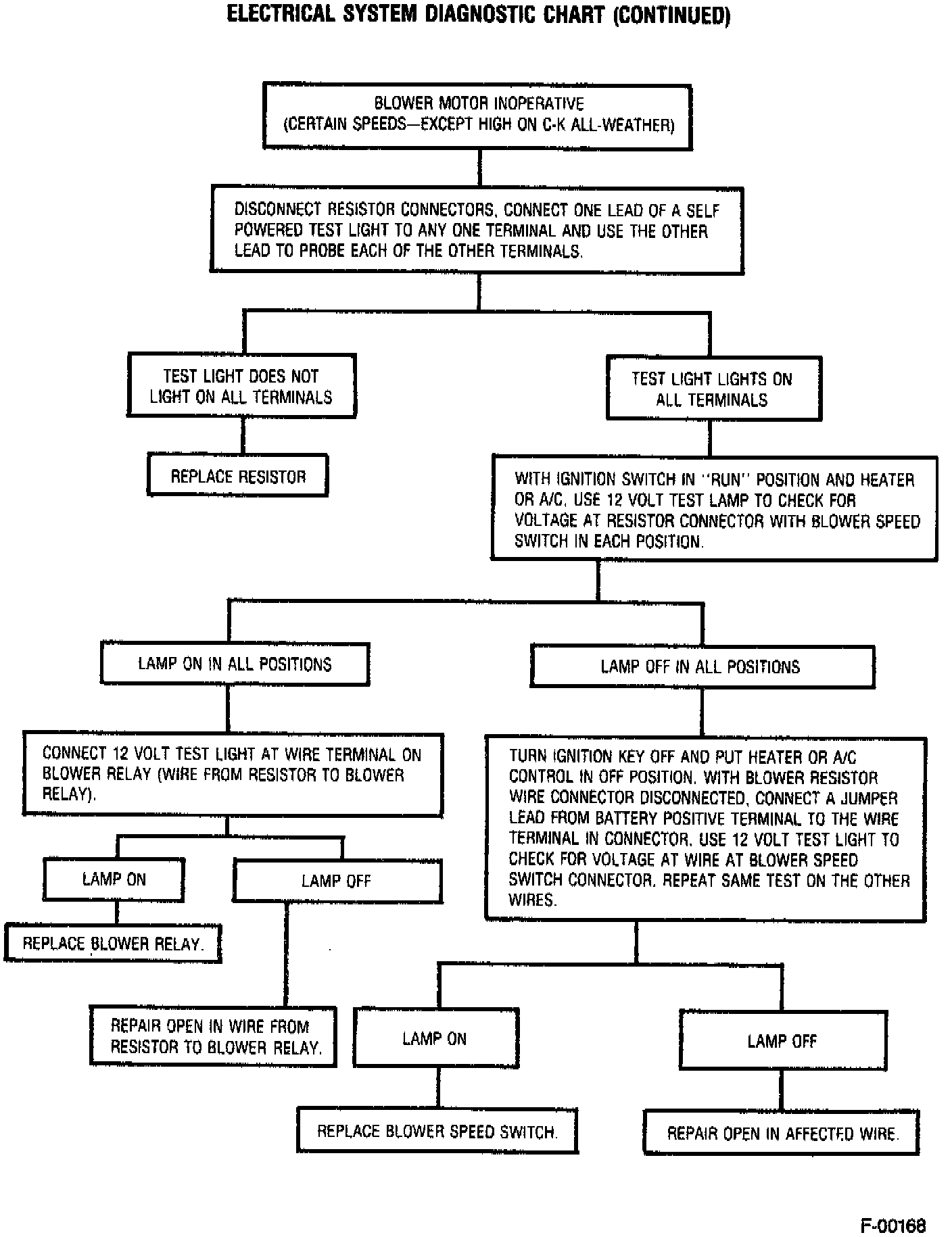

Figure 15-Electrical System Diagnosis Chart (Continued):
