Home >> GMC >> 1986 >> Safari Van M V6-262 4.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Functional Test/Check >> Functional Test - Without A/C >> Deluxe Heater

Deluxe Heater

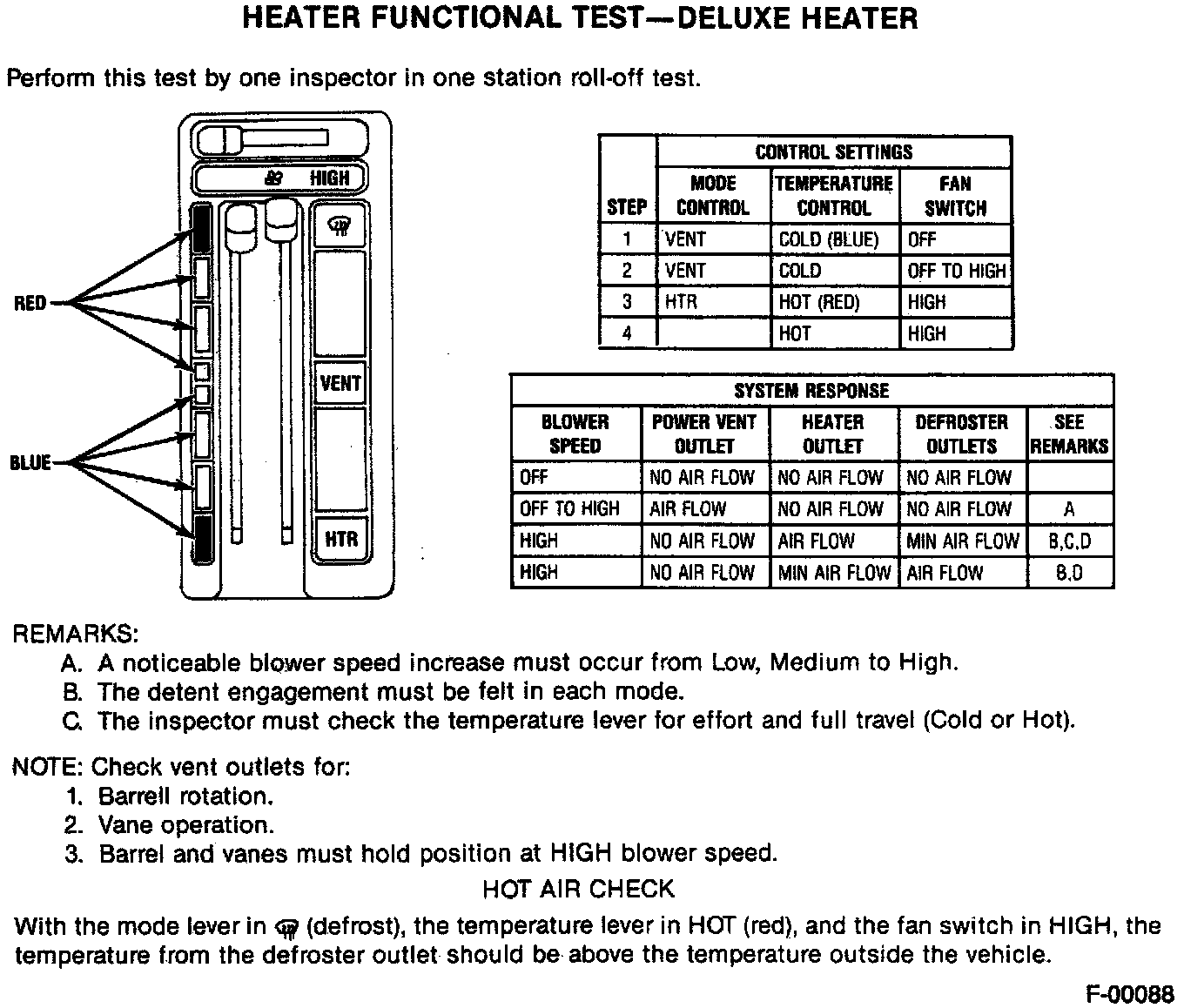

Figure 9-Functional Test-Deluxe Heater:
