Removal

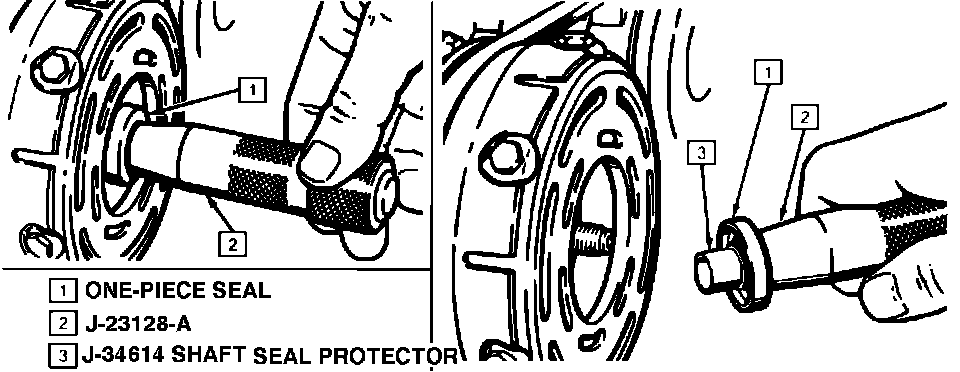

Fig. 6 Replacing shaft seal seat & seal:

1. Discharge refrigerant and remove clutch plate and hub outlined previously.
2. Using tool J-5403-A, remove shaft seal seat retainer ring.
3. Remove shaft seal seat with tool J-23128-A, then the shaft seal with tool J-9392, Fig. 6.
4. Remove seal seat O-ring with tool J-9553-01.
