Figure 10-Blower Motor Replacement:

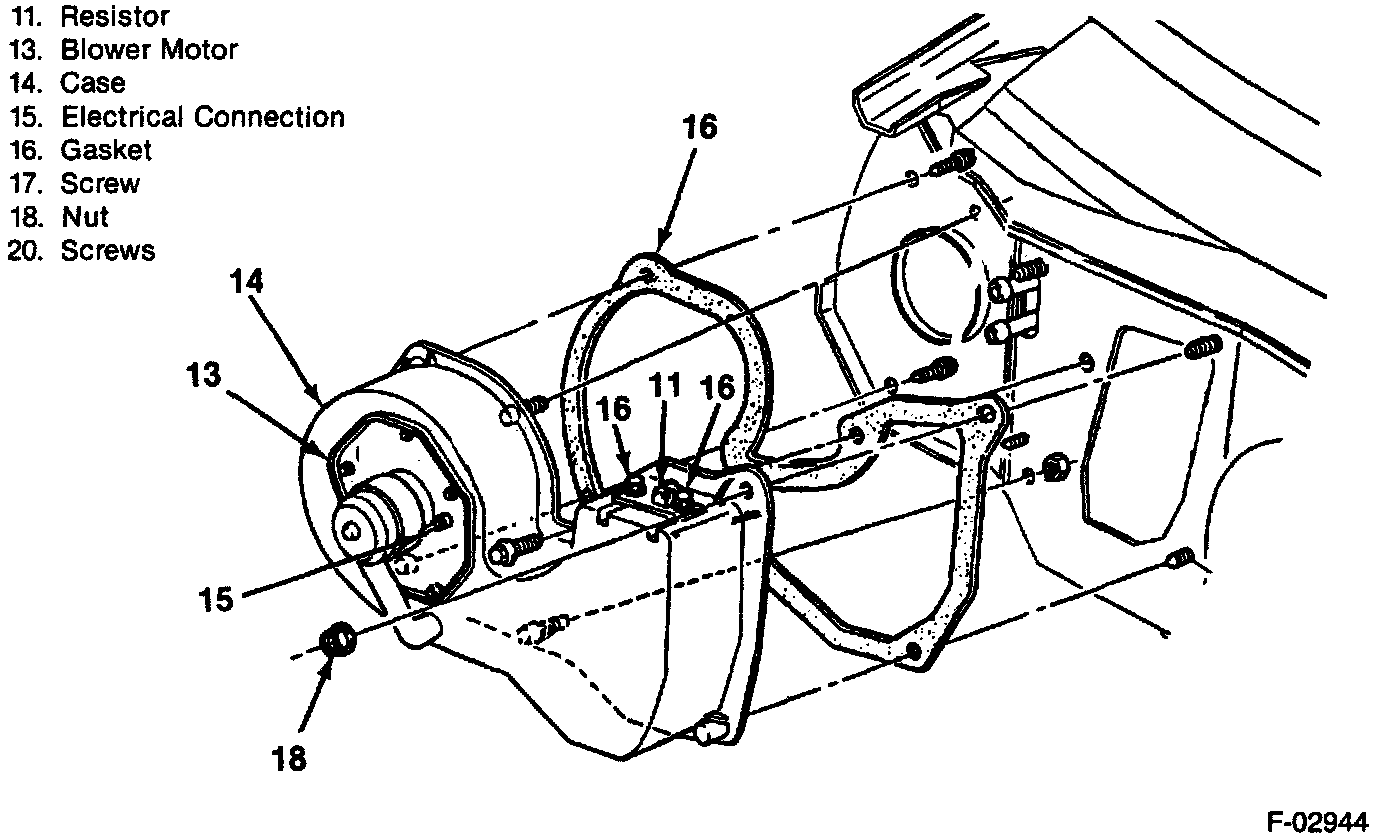

Figure 9-Blower Motor and Case Replacement:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Electrical connection at the blower motor (15).
3. Coolant bottle.
4. Windshield washer fluid bottle.
5. Blower motor flange screws (20).
6. Motor (13).

INSTALL OR CONNECT
1. Motor (13).
2. Windshield washer fluid bottle.
3. Coolant bottle.
4. Electrical connection at the blower motor (15).
5. Negative battery cable.
