Engine Mount: Service and Repair

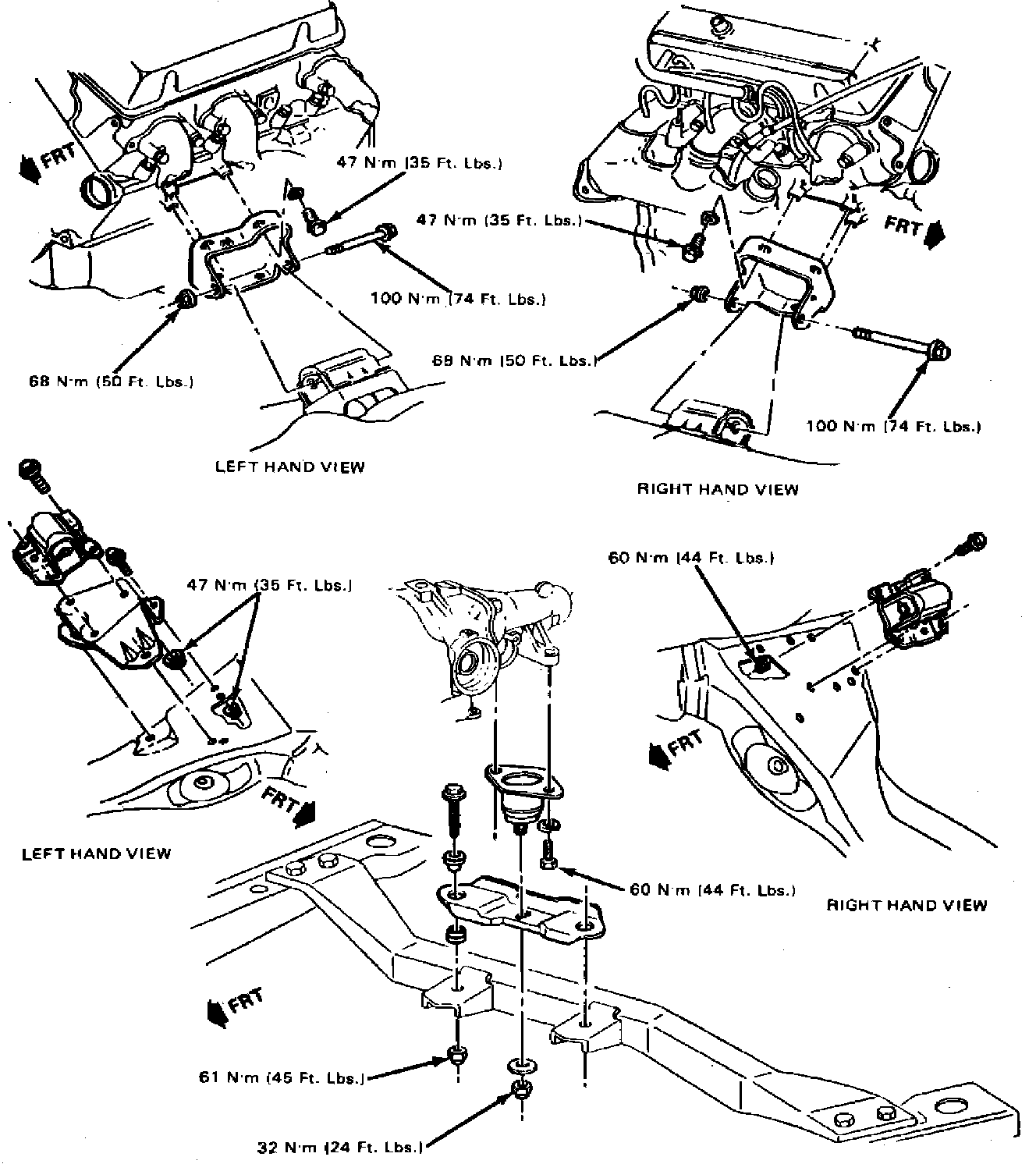

Fig. 1 Engine mount replacement:

FRONT
1. Remove mount retaining bolt from below frame mounting bracket.
2. Raise front of engine, then remove mount attaching bolts and the mount, Fig. 1. Check for interference between rear of engine and cowl panel. Raise engine only enough to provide sufficient clearance for mount removal.
3. Reverse procedure to install.

REAR
1. Support transmission to relieve weight from rear mounts.
2. Remove crossmember-to-mount attaching nuts.
3. Remove mount attaching bolts, then raise transmission and remove mount, Fig. 1.
4. Reverse procedure to install. Align mount to crossmember when lowering transmission into position.
