MUNCIE 5LM60 (HM-290) 4 & 5 Speed

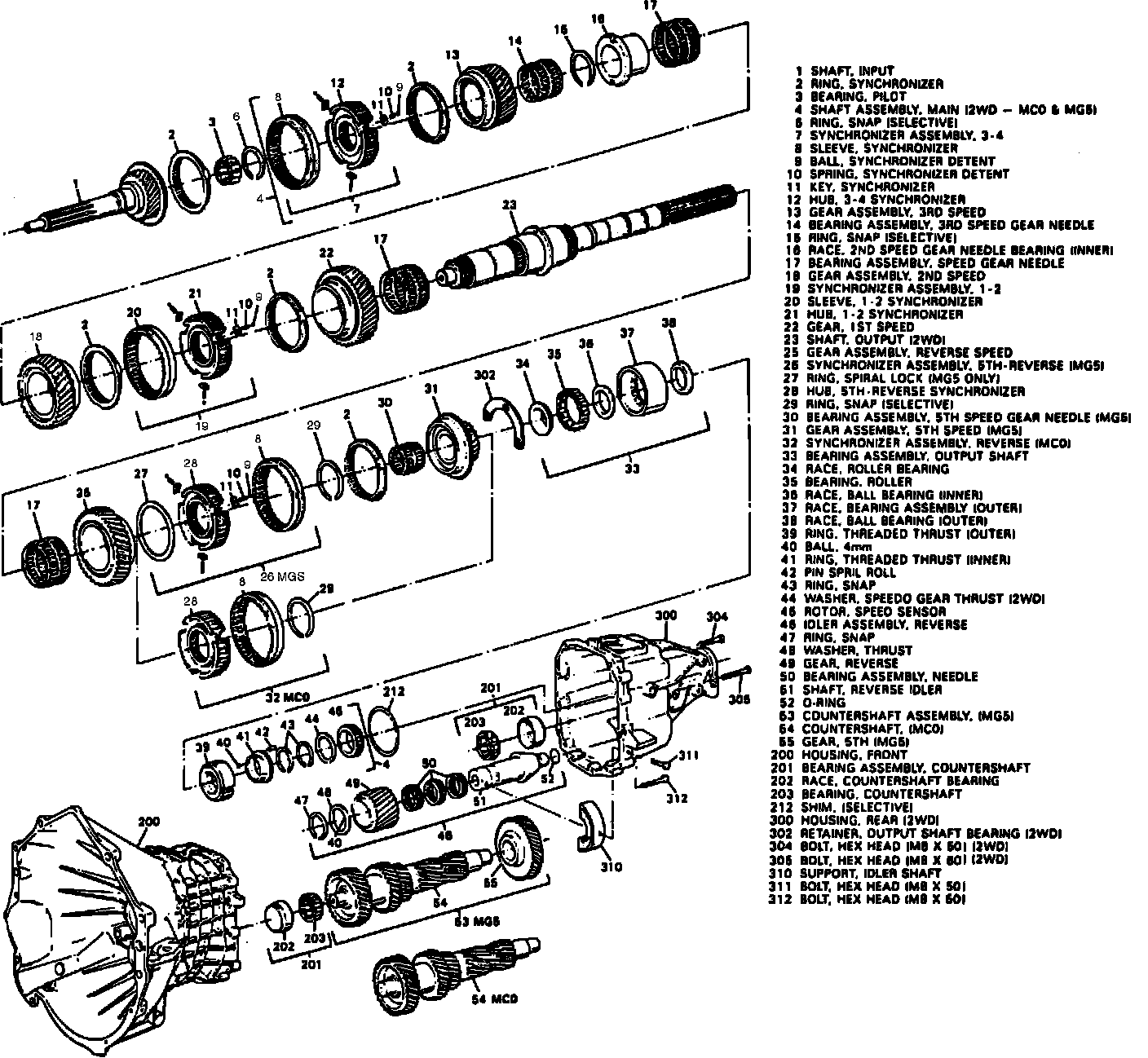

Fig. 1 Two Wheel Drive Transmission Gear Components:

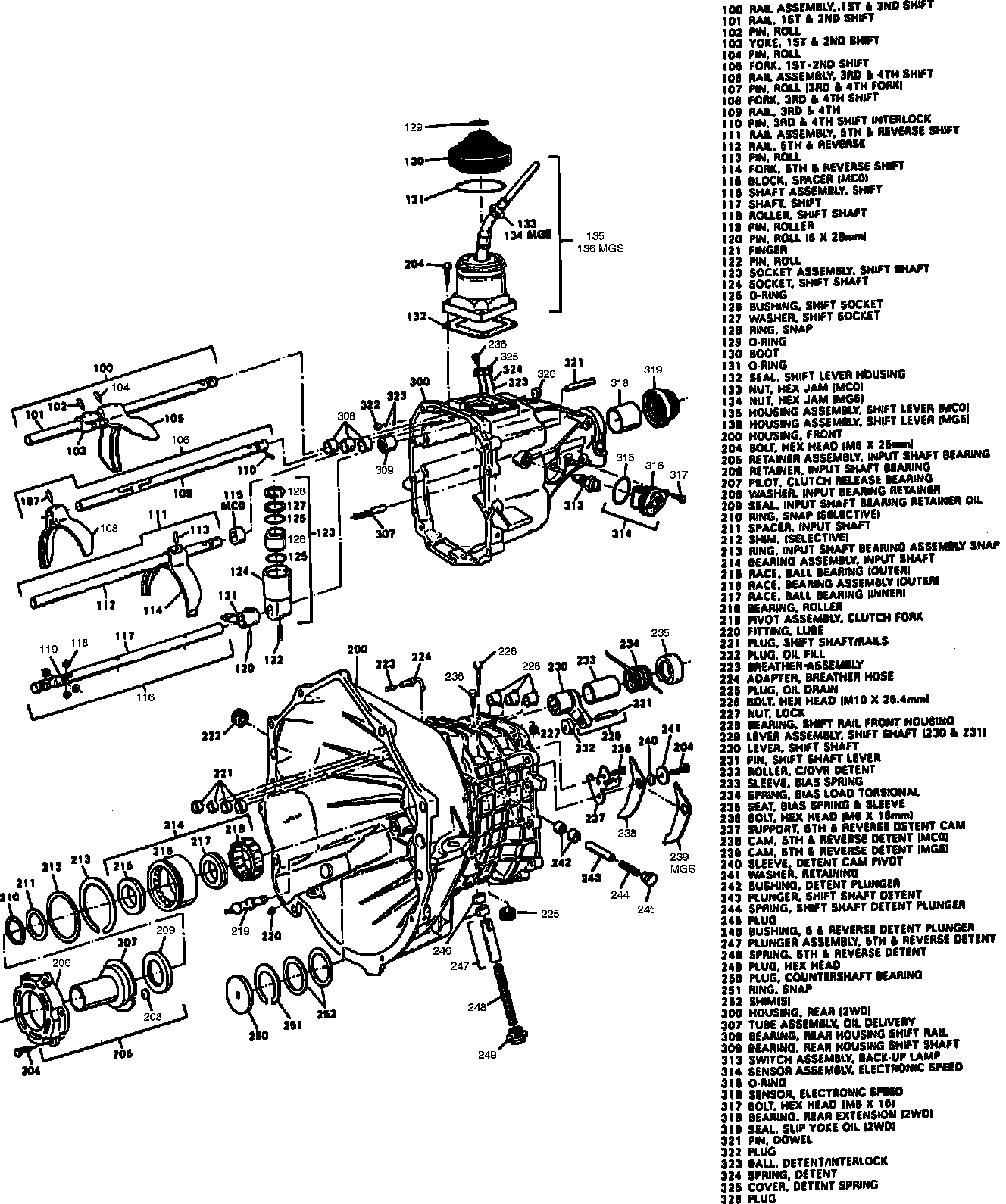

Fig. 2 Two Wheel Drive Transmission Shift Mechanism And Case Components:
