GMC
>>
1986
>>
Safari Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trailer Adapter Kit
>>
Lighting System
Lighting System

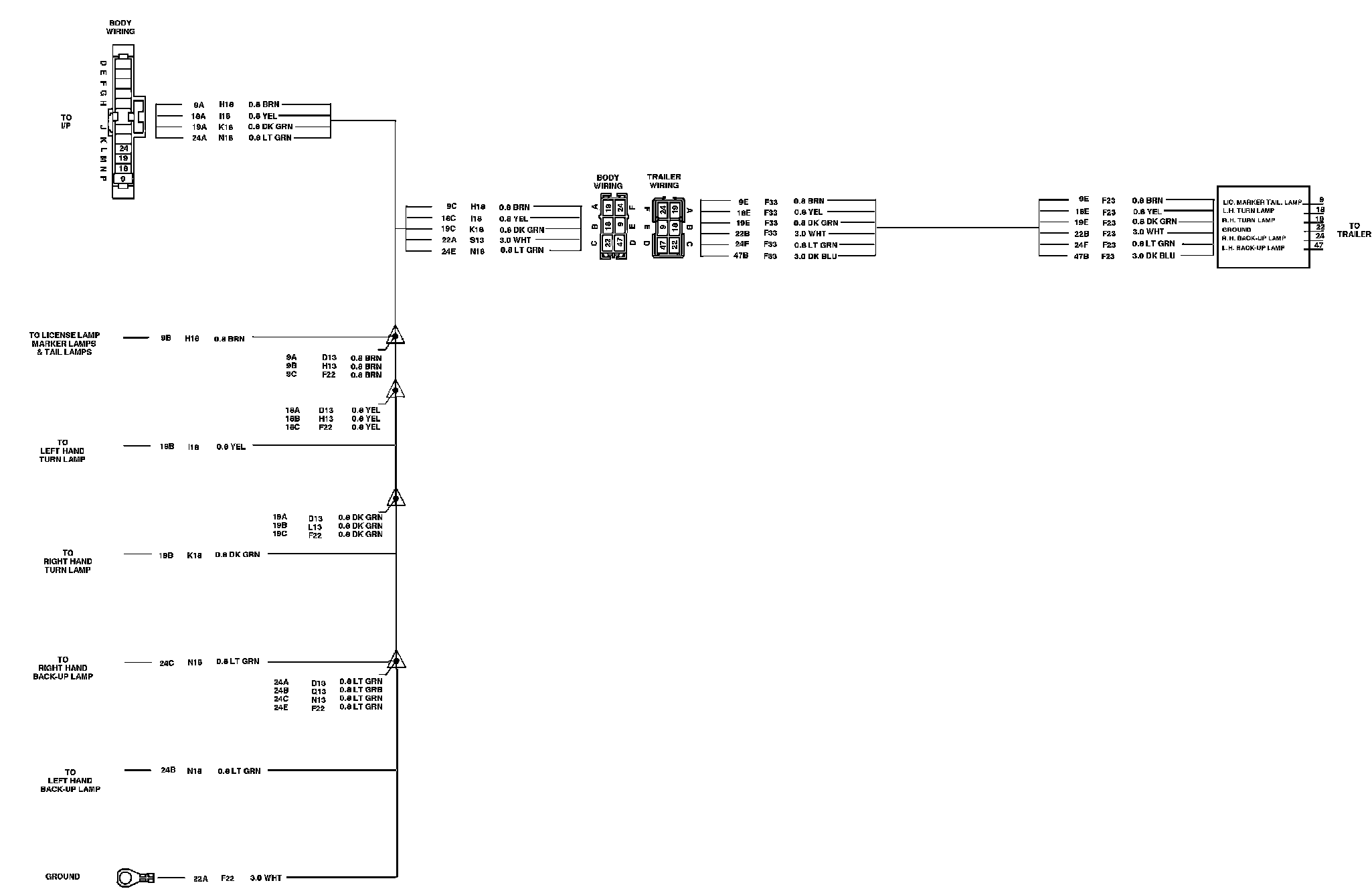

Trailer Wiring Circuit:
