GMC
>>
1986
>>
Safari Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Stereo System
With Stereo System

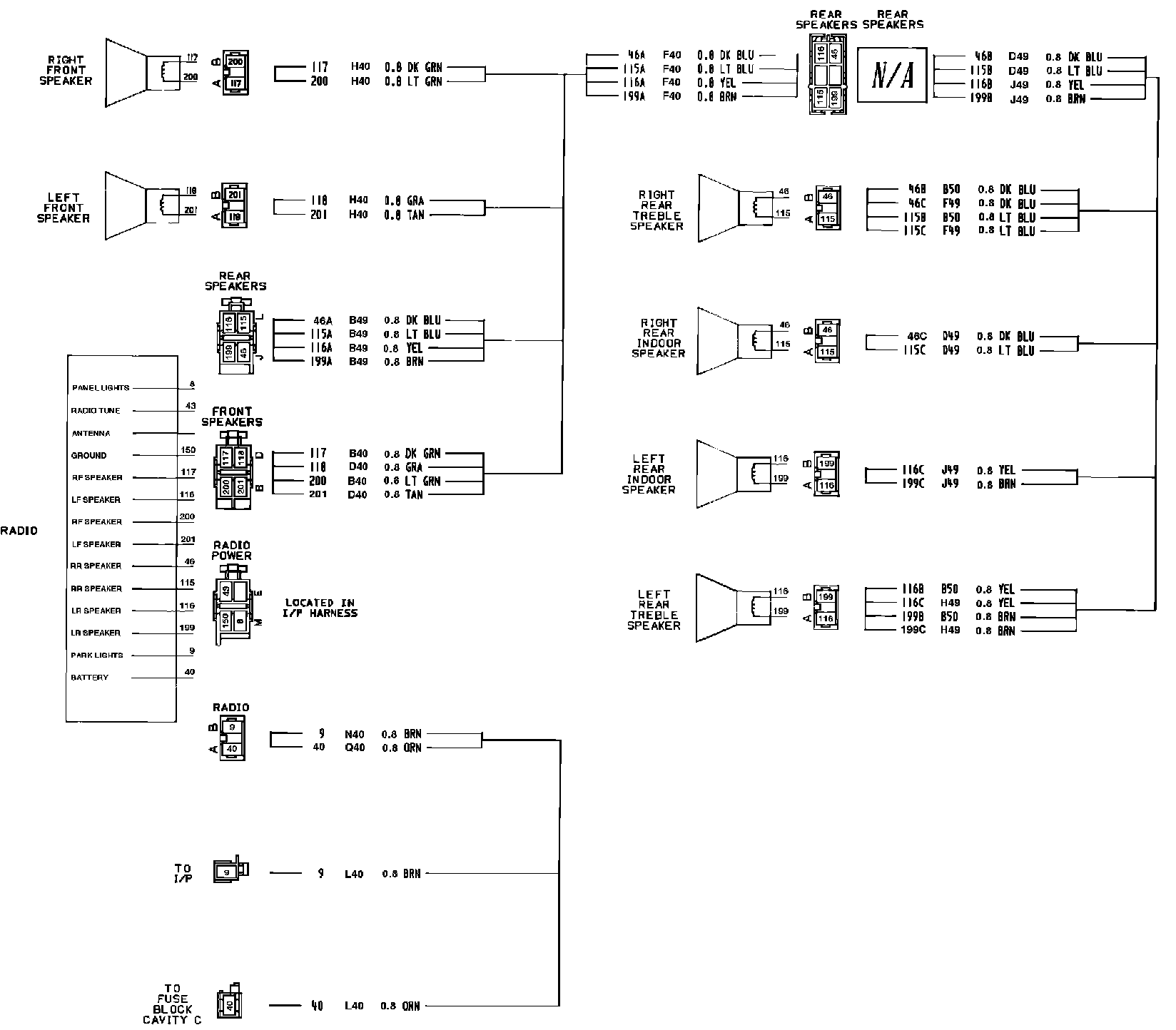

Radio Wiring Circuit W/Stereophonic Radio:
