Cruise Control Inoperative

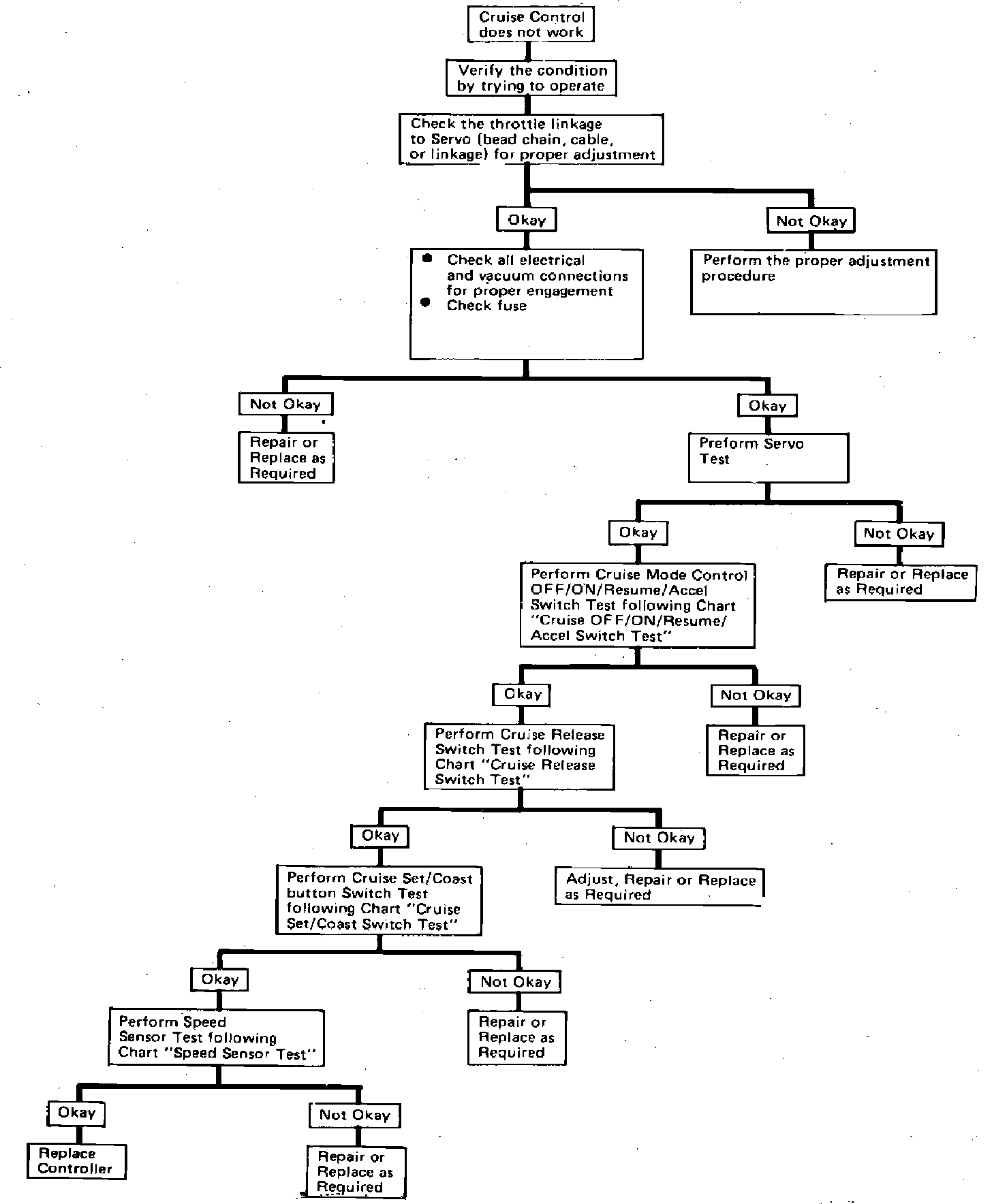

Fig. 9 Cruise control system diagnostic chart. Custom Cruise III:





Refer to Fig. 9 to diagnose an inoperative cruise control system.
