Vacuum and Vapor Hose Diagrams

Refer to Figs. 22 through 36 for vacuum hose routing schematics.

Fig. 41 Vacuum hose routing. Models w/accumulator & check valve (models less accumulator and/or check valve similar):

Fig. 22 Vacuum hose routing. Custom Cruise III models w/accumulator & check valve (models less accumulator and/or check valve similar)

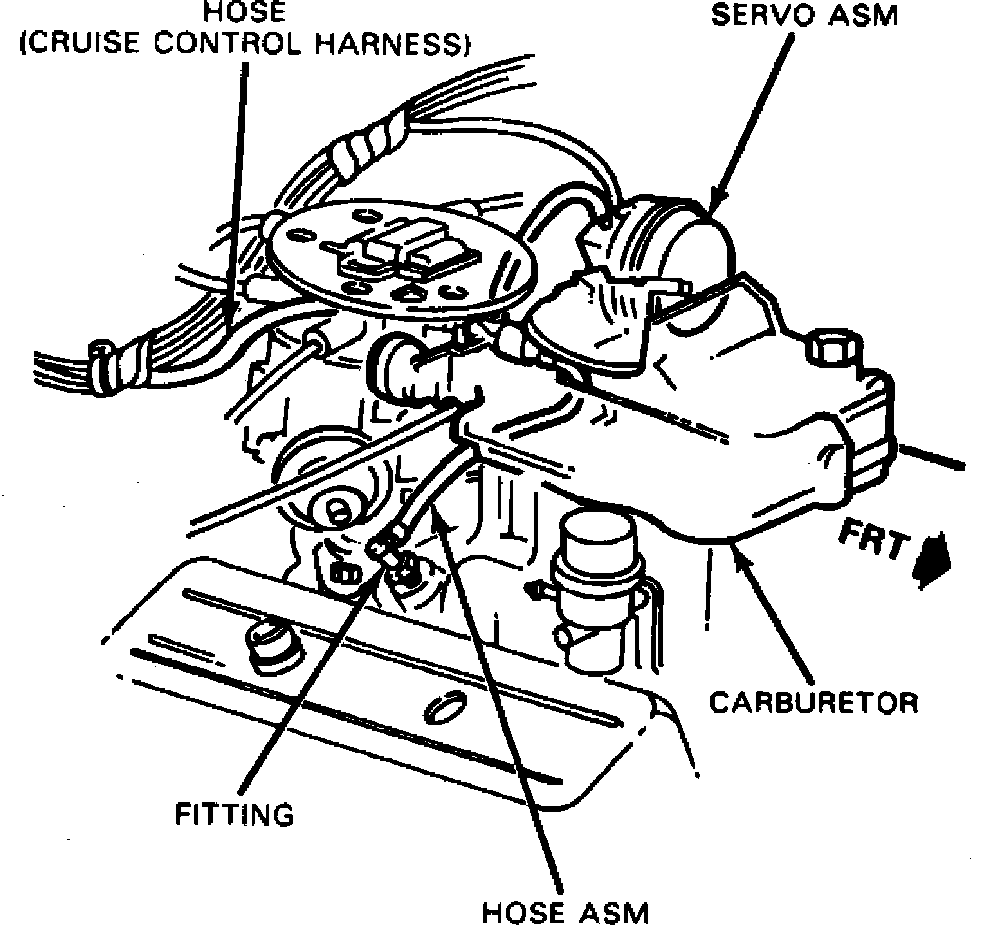

Fig. 24 Vacuum hose routing. 1985---87 Astro Van & Safari w/V6-262 engine
