Radio/Stereo: Service and Repair

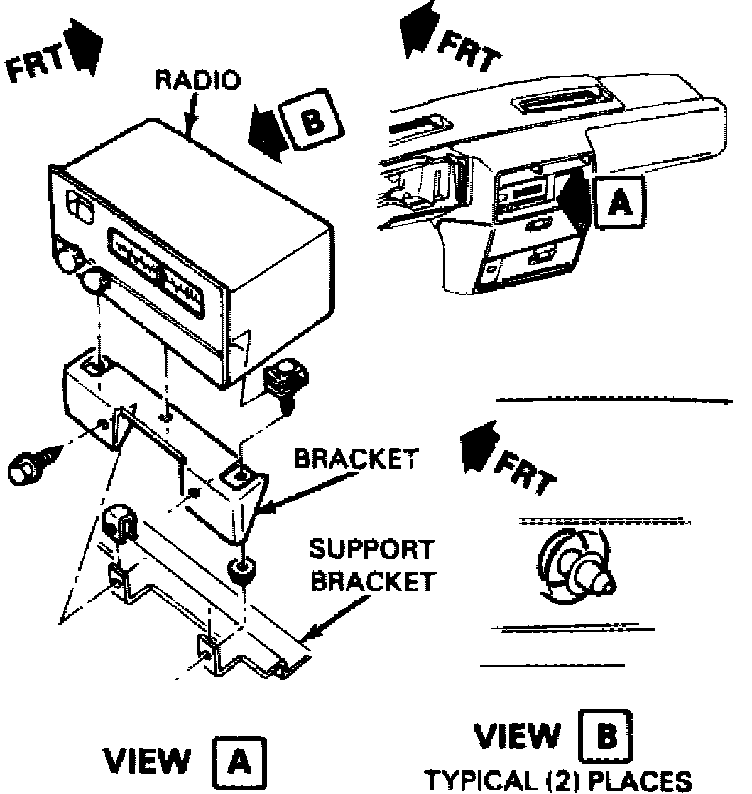

Fig. 12 Radio replacement:





1. Disconnect battery ground cable.
2. Refer to Fig. 12 to replace radio assembly.
