DTC 34

Code 34 - MAP Sensor (Voltage Low):

Wiring Diagram For Code 34 - MAP Sensor:

CODE 34 MAP SENSOR (SIGNAL VOLTAGE LOW)

Circuit Description:

The Manifold Absolute Pressure Sensor (MAP) responds to changes in manifold pressure (vacuum). The ECM receives this information as a signal voltage that will vary from about 1 to 1.5 volts at idle to 4-4.5 volts at wide open throttle.

If the MAP sensor fails the ECM will substitute a Fixed MAP value and use the Throttle Position Sensor (TPS) to control fuel delivery.

Code 34 will set when signal is too low and ignition is on.


Test Description:

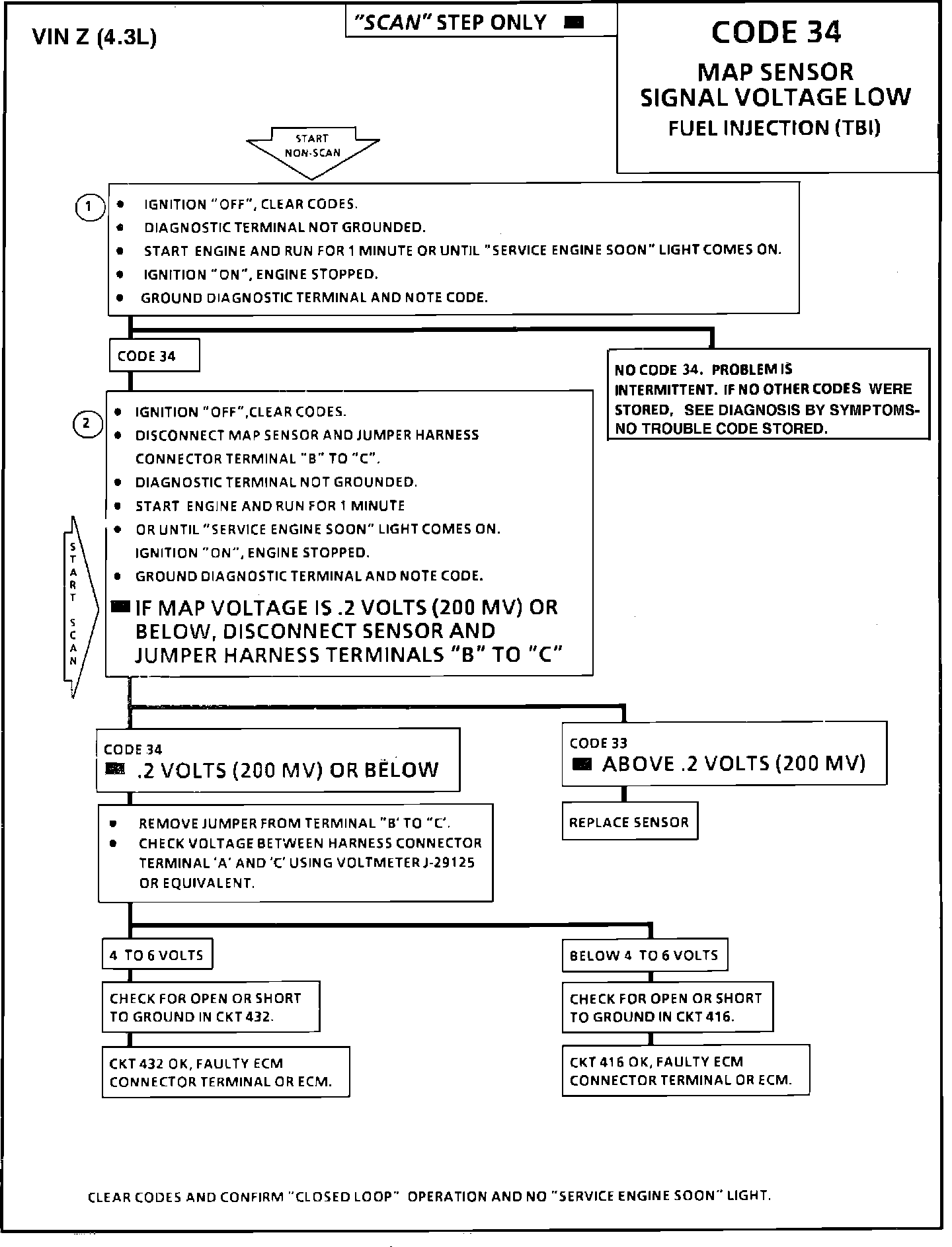

1. Confirms Code 34 if that fault is still present.

2. If the ECM recognizes and sets Code 33, high MAP signal, the ECM and wiring are OK.
