Stabilizer Bar: Installation
- Apply rubber grease to stabilizer bar bushing locations. Position bar-to-frame bushings with slit toward front of vehicle. Place stabilizer bar in position on frame and install frame brackets over bushings. Ensure brackets are positioned properly over bushings.

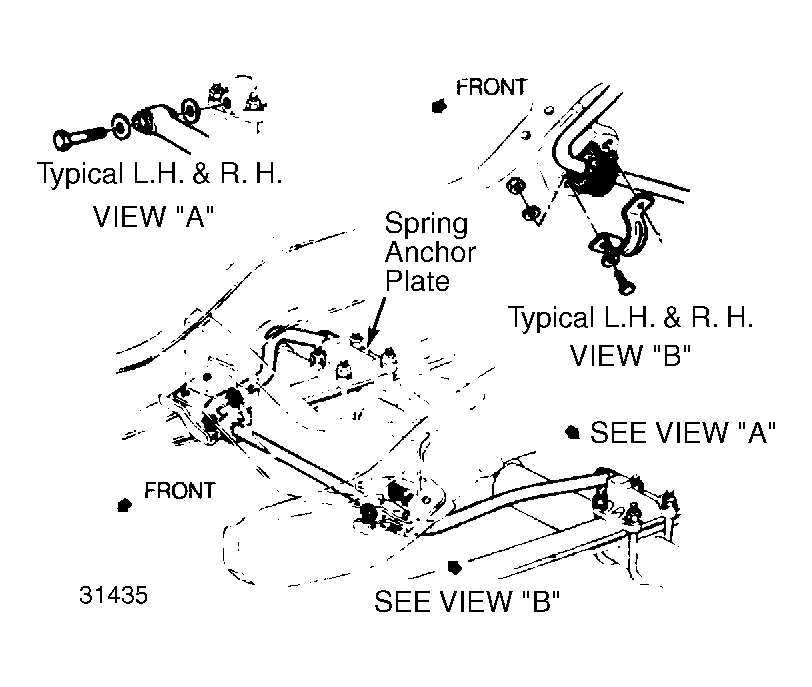

- Install bolts and nuts finger tight. Install pivot bolts and washers through stabilizer bar bushings and into lower spring anchor plates. See Fig 1 . Tighten all nuts and bolts. Lower vehicle.
