Suspension - Front (4WD) - Except "S" Series: Description

NOTE: Vehicle series numbers used in this article has been abbreviated for common reference to Chevrolet and GMC models. Chevrolet models use numerical designations as listed; GMC models are identified as follows: 10 = 1500; 20 = 2500; 30 = 3500.

At the wheel ends of the axle tubes, 2 types of steering knuckle attachments are used. The K10/20 series knuckle is attached with ball joints. The K30 series use a king pin type attachment. The tapered upper king pin fits in a tapered nylon bushing. The lower king pin is part of the bearing cap and rides in a tapered roller bearing.

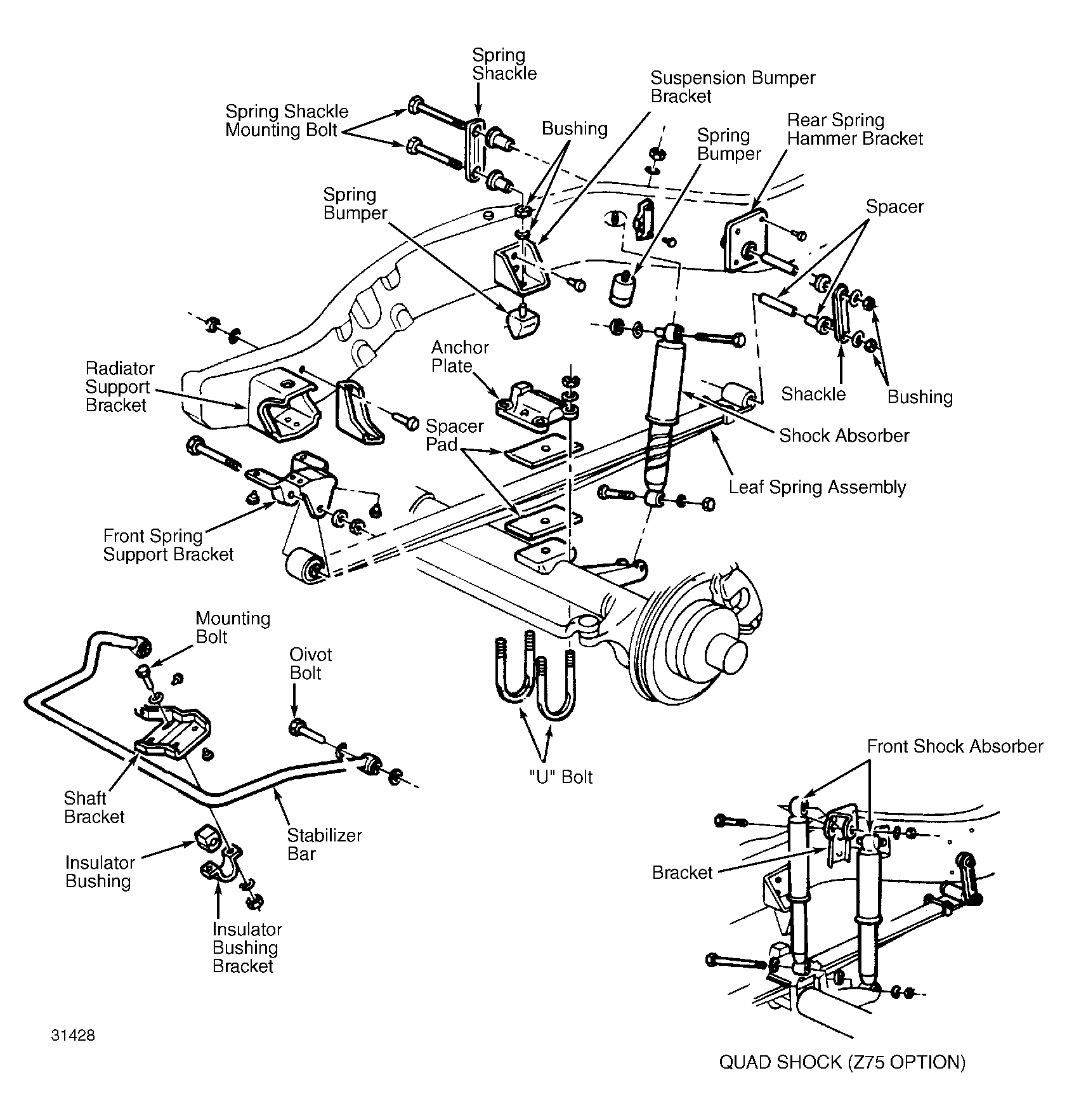

Hydraulic or gas-charged shock absorbers are attached to brackets on frame rails and front axle assembly. The Z75 option features 2 shocks per side. Leaf springs mount to frame rail brackets and shackles, providing support for axle assembly. A stabilizer bar is mounted to frame rail by brackets and to front axle assembly by pivot bolts. See Figure .

An automatic locking hub is used on all models. This system automatically engages the hubs whenever four-wheel drive is selected. A manual locking hub is also used on K30 series (only). This system must be engaged manually whenever 4WD is selected.
