Oil Pump: Disassembly

Remove pump cover. If necessary, remove inlet tube and screen assembly. Mark gears at a meshing point, so they may be reassembled with same gear teeth indexing. Remove gears. See Fig 1.

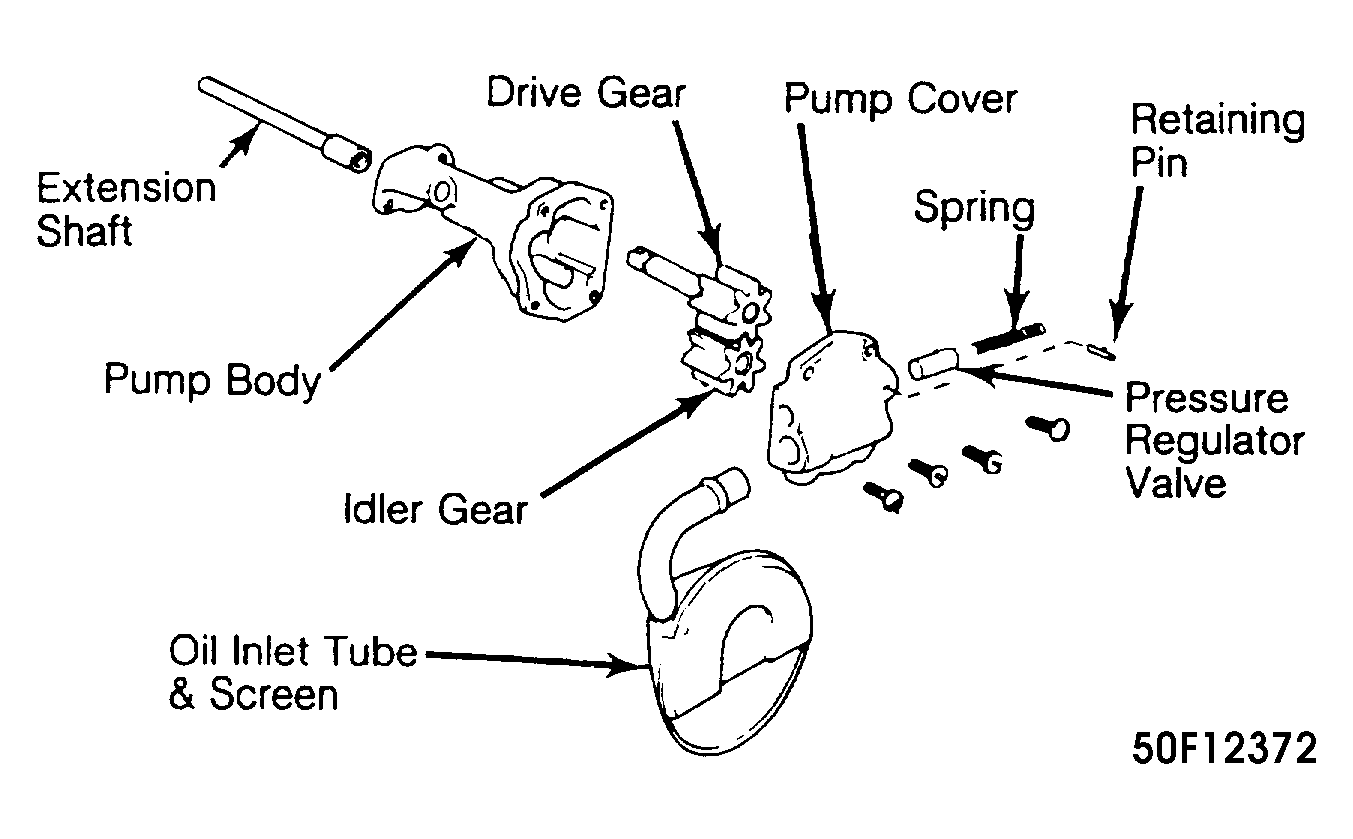

Fig 1: Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.
