Trouble Shooting: Hydro-Boost

NOTE: Use the following diagnostic charts to diagnose the Hydro- Boost system.

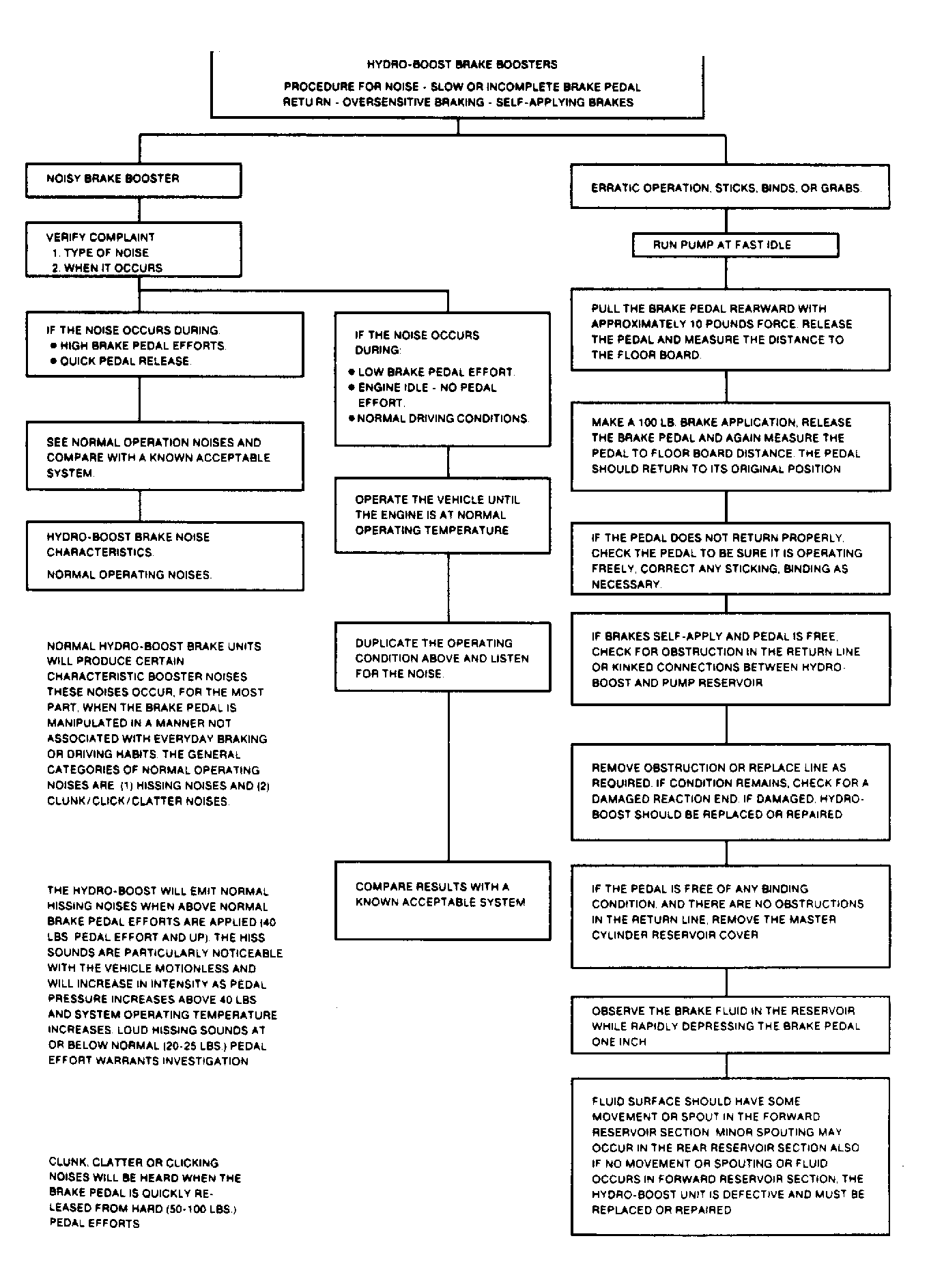

Fig 1: Procedure for Slow or Incomplete Pedal
G71180

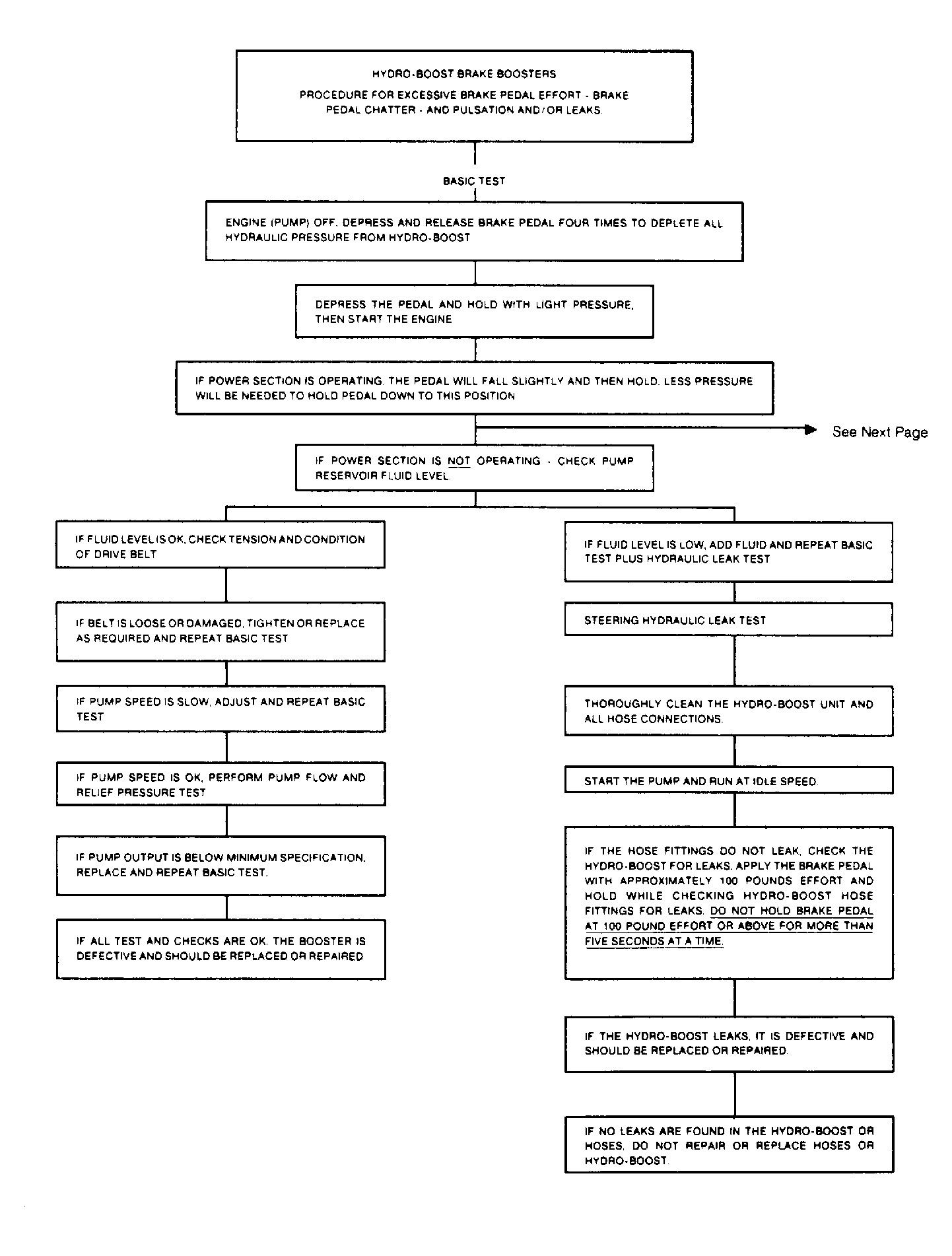

Fig 2: Procedure for Excessive Brake Pedal Effort - 1 of 2
G71181

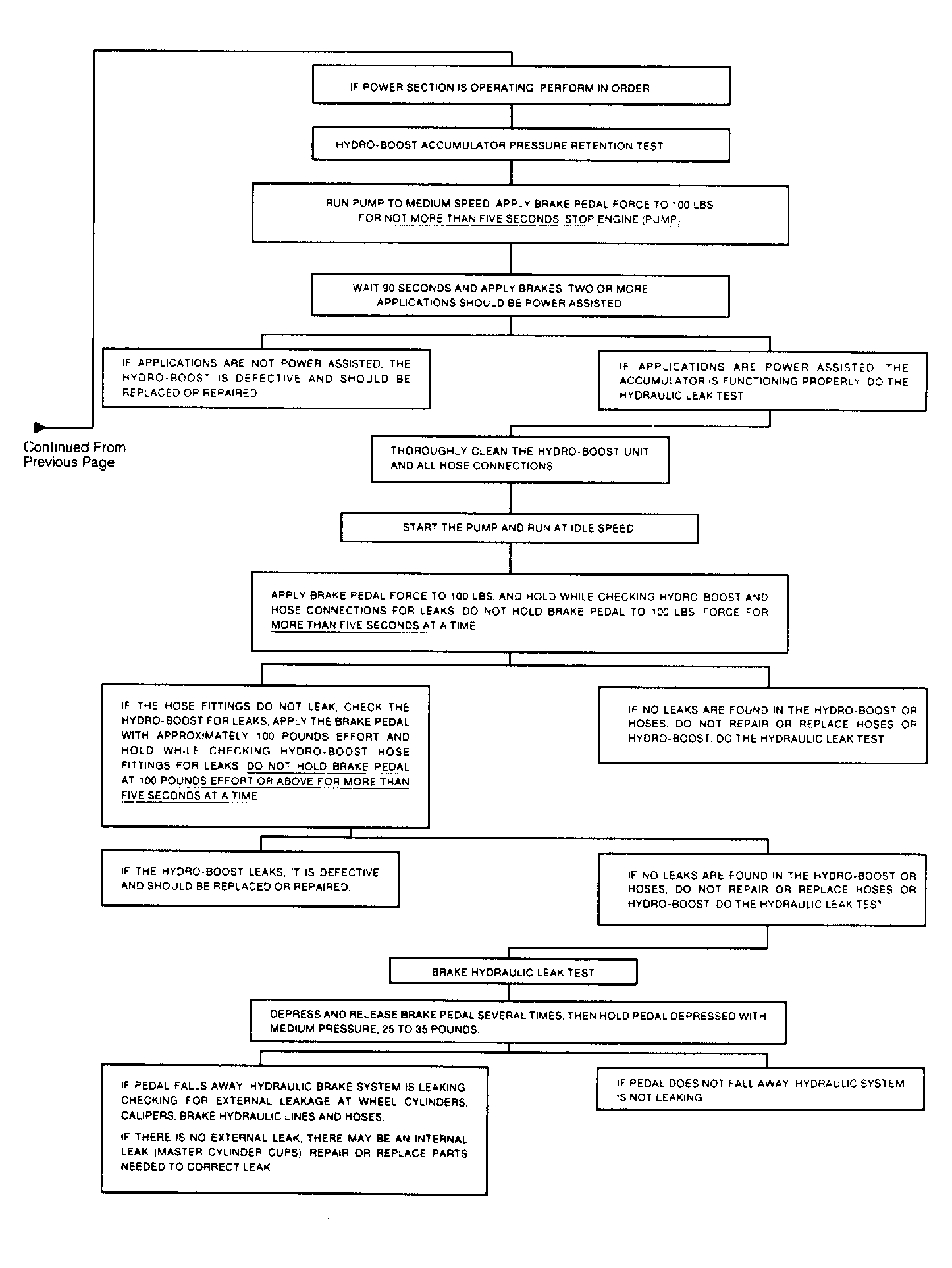

Fig 3: Procedure for Excessive Brake Pedal Effort - 2 of 2
G71182
