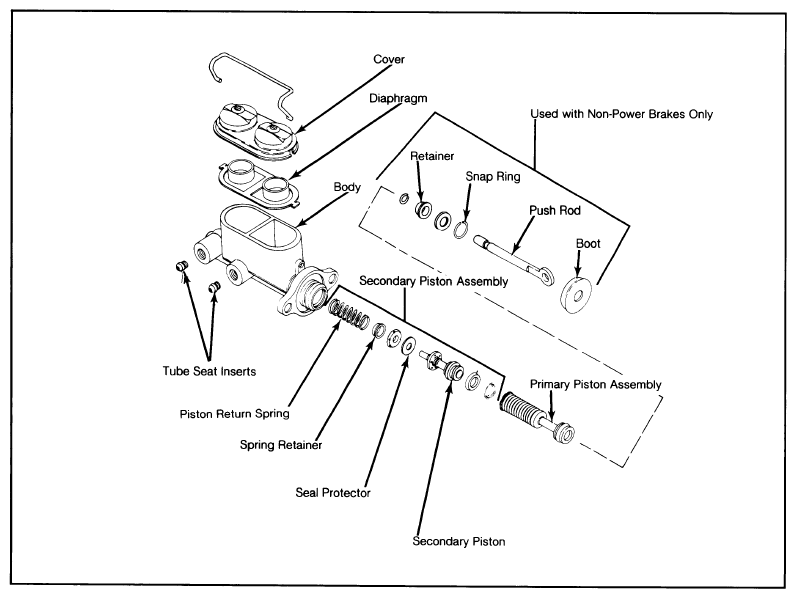

Master Cylinder: Reassembly
- Install replacement tube seats by threading a spare brake line tube nut into hole and turning nut in until tube seat bottoms Do not cock tube seat in hole Remove nut and check for burrs which may have been loosened by nut.
- Install piston cups on secondary piston, with cup lips facing away from each other Install seal protector, piston seal, spring retainer and return spring on secondary piston Install seal so lip faces interior of master cylinder when installed.
- Lubricate cylinder bore with clean brake fluid and install secondary piston assembly Lyrically primary piston seals and install primary piston assembly in bore Hold primary piston down in bore and install snap ring in groove.
- Install secondary piston stop bolt (if equipped) Install master cylinder reservoir, grommets and quick take-up valve (if removed) Install master cylinder cover and new diaphragm On vehicles with manual brakes, assemble brake pedal push rod through retainer (if used), and push retainer over end of master cylinder. Install rubber boot over push rod.
