Camshaft End Thrust

Check camshaft end play with feeler gauge, if end play exceeds 0.005", gear, thrust plate or both must be replaced. See Fig 1.

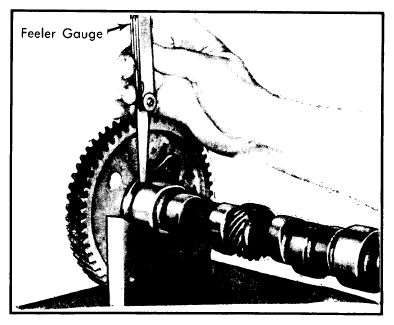

Fig 1: Checking Camshaft End Play

Courtesy of GENERAL MOTORS COMPANY
