Valve Springs: Installation

To install valve springs, reverse removal procedure. Install seal in second groove of valve stem before installing keepers and releasing spring compressor.

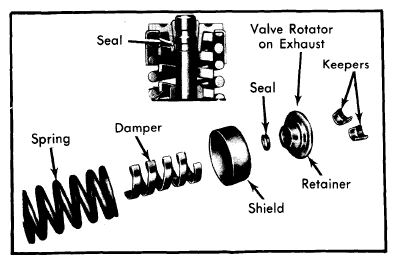

Fig 1: Exploded View Of Valve Spring Assembly
G09329320Courtesy of GENERAL MOTORS COMPANY
