Oil Pump: Removal

Mark gears so they may be reassembled with same teeth indexing. Do not disturb pickup screen on pipe. Screen is serviced as an assembly.

NOTE: If pump gears or body are damaged or worn, replacement of entire pump assembly is necessary.

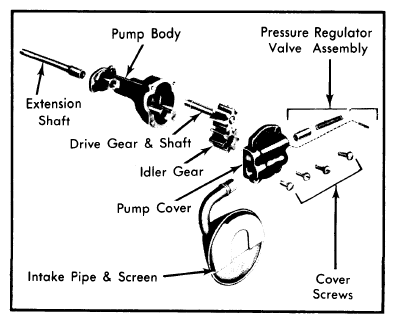

Fig 1: Exploded View Of Engine Oil Pump
G09329330Courtesy of GENERAL MOTORS COMPANY
