Timing Chain & Sprockets: Installation

To install new crankshaft sprocket, pull into place with a bolt or drive into place with suitable driver and hammer. Install camshaft sprocket and timing chain making sure timing marks on sprockets are aligned. Install and tighten sprocket bolts. See Fig 1.

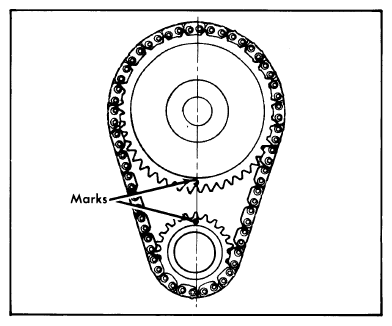

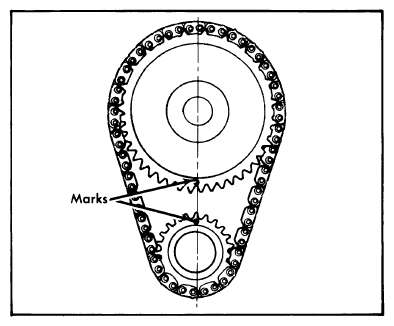

Fig 1: Timing Chain Sprocket Alignment

Courtesy of GENERAL MOTORS COMPANY
