Removal & Installation: Removal

Depress and release brake pedal several times with engine not running. This will make sure that all pressure is discharged from accumulator. Clean dirt and grease from hydraulic brake line connections. Disconnect brake lines from master cylinder. Remove nuts and washers that secure master cylinder to Hydroboost. Remove master cylinder. Cover open ends of brake lines.

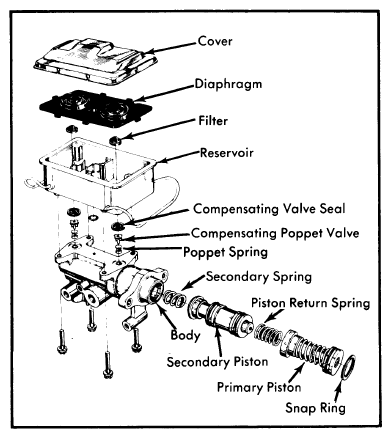

Fig 1: Exploded View of Bendix Mini-Master Cylinder
G09317403Courtesy of GENERAL MOTORS COMPANY
