Hard Pedal

Grease or fluid on lining. Improper brake lining or fluid. Improper adjustment. Pedal linkage binding. Faulty master cylinder. Glazed linings. Defective brake drums.

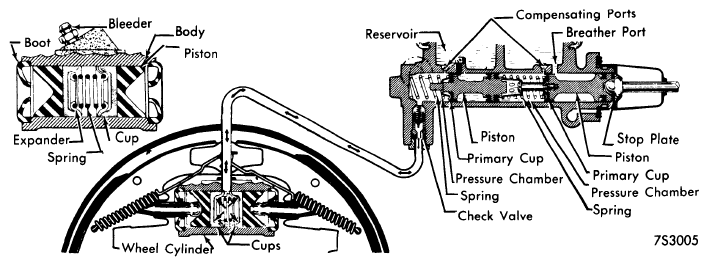

Fig 1: HYDRAULIC BRAKE SYSTEM (TYPICAL)
G09339706Courtesy of NOT AVAILABLE
