Crankshaft & Camshaft Bearings

Each main and camshaft bearing is fed oil by a passage extending through crankcase webs from main oil gallery.

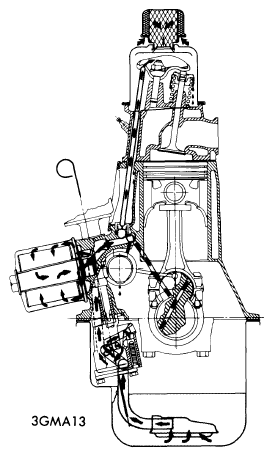

Fig 1: ENGINE OILING SYSTEM
G09339591Courtesy of GENERAL MOTORS COMPANY
