Chevrolet & GMC "G" Models (1967-70)

Disconnect battery ground cable and speedometer cable. Remove two nuts attaching cluster to dash panel. Pull cluster clear of dash panel. Disconnect all indicator and illuminating bulb sockets noting location for proper reinstallation. Remove cluster.

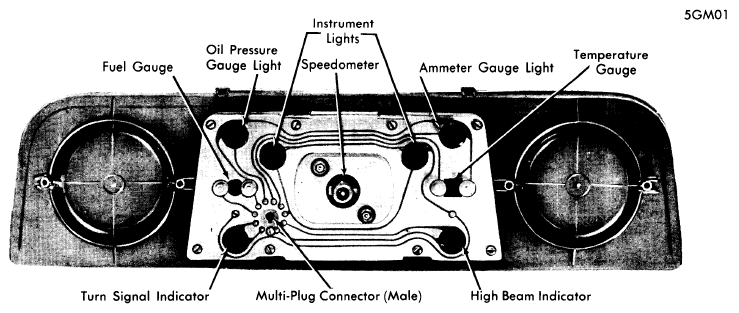

Fig 1: INSTRUMENT CLUSTER REAR VIEW (TYPICAL 1965-66 GMC)

Courtesy of GENERAL MOTORS COMPANY

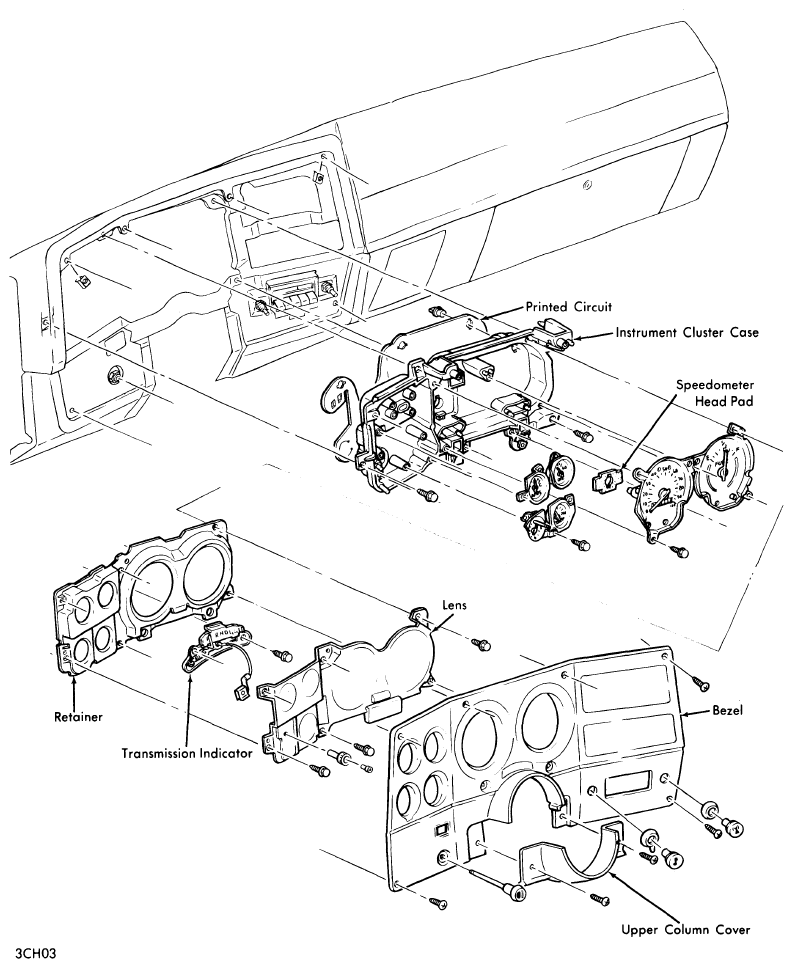

Fig 2: INSTRUMENT CLUSTER, CHEVROLET & GMC (1973-74)

Courtesy of GENERAL MOTORS COMPANY
