1970-74 Chevrolet & 1973-74 GMC: Ford

All axles with integral housing are Dana/Spicer. The axle ratio is stamped on a metal tag attached to two differential housing cover screws.

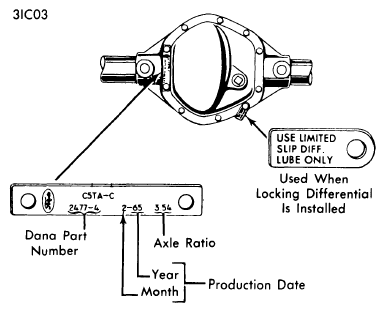

Fig 1: FORD RATIO TAG LOCATION
G09335681Courtesy of NOT AVAILABLE
