Tires and Wheels - Removal






REMOVAL




1. Raise and support the vehicle.

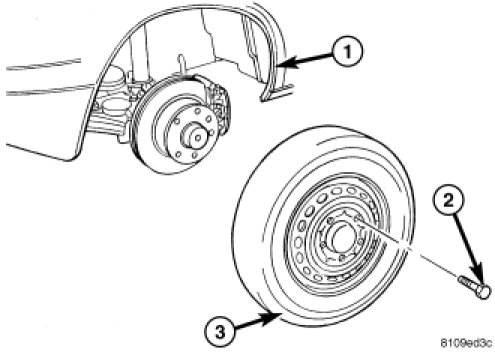

2. Remove the wheel lug studs (SRW).

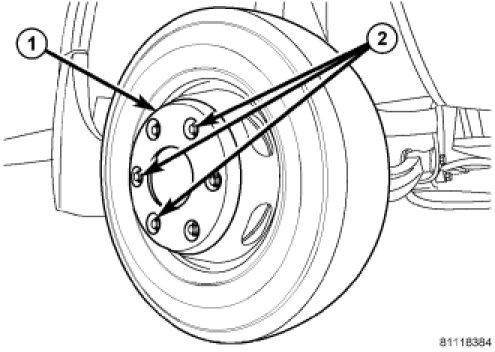

3. Remove the lug nuts (DRW) On vehicles with dual rear wheels do not pry off the front hub cap (1) the lug nuts must be removed in order to remove the hub cap.




4. Remove the wheel and tire assembly (3).
