Single Rear Wheel (SRW)

SINGLE REAR WHEEL (SRW)




1. Raise and support the vehicle.
2. Remove the stabilizer links (3) at the bar (4).

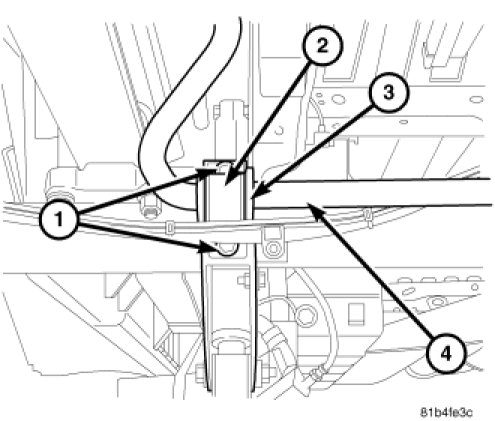

3. Remove the stabilizer bar clamp bolts (1) at the axle.
4. Remove the bracket (2).
5. Remove the stabilizer bar (4) from the vehicle.
