Tire Pressure Monitor Receiver / Transponder: Description and Operation






DESCRIPTION

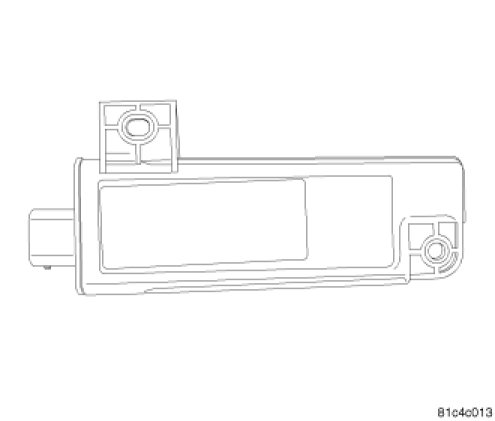

There are 2 transponders used on this vehicle.

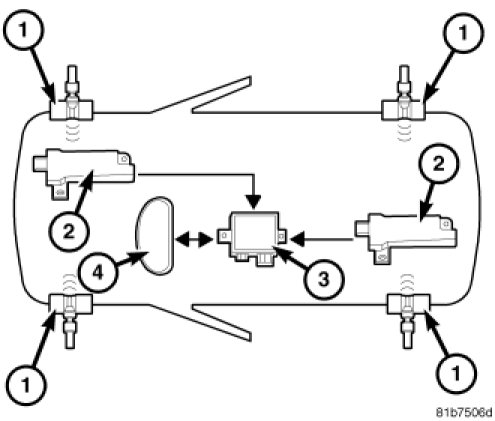

The front transponder (2), 1 is located in the right front under the headlamp and is mounted to the right front frame rail, The rear transponder (2) is located between the left rear tire and differential mounted to the body just forward of the axle assembly. The transponders provide the Tire Pressure Monitor Module (TPMM) (3) with the location of the tire pressure sensors (1) on the vehicle.
