Evaporator Temperature Sensor / Switch: Diagrams

Component ID: 456

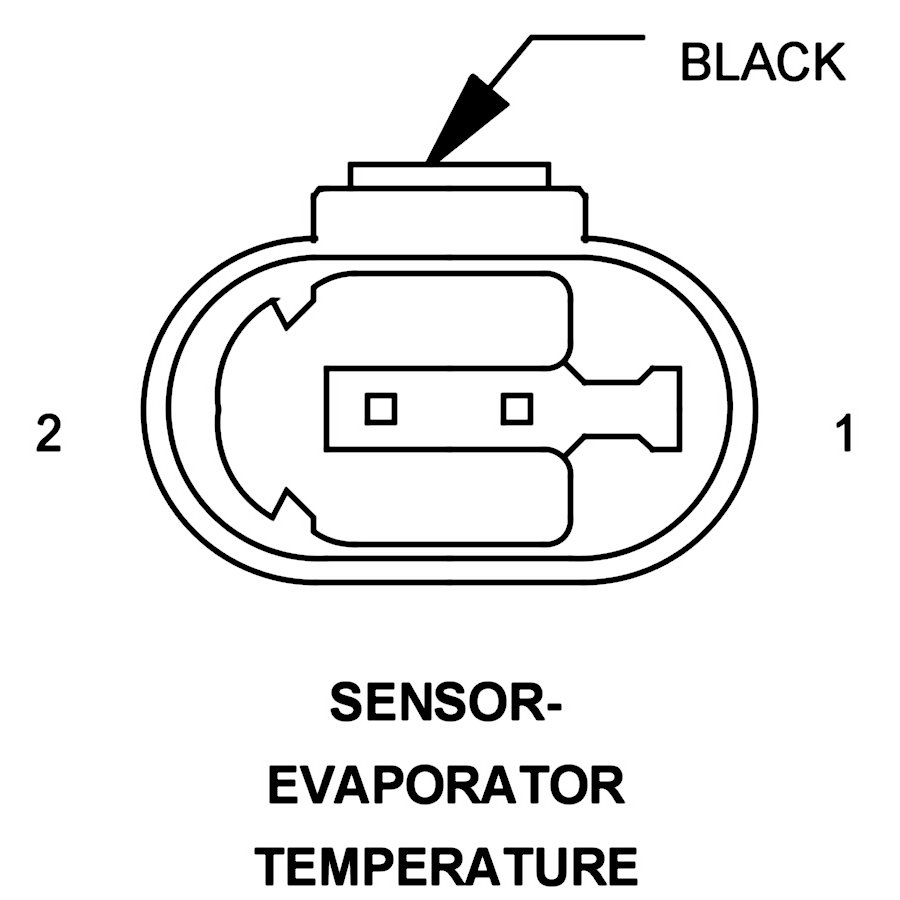

Component : SENSOR-EVAPORATOR TEMPERATURE

Connector:
Name : SENSOR-EVAPORATOR TEMPERATURE
Color : BLACK
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 - 2400 20DB
2 - 2401 20PK
