Switch-Parking Heater

Component ID: 543

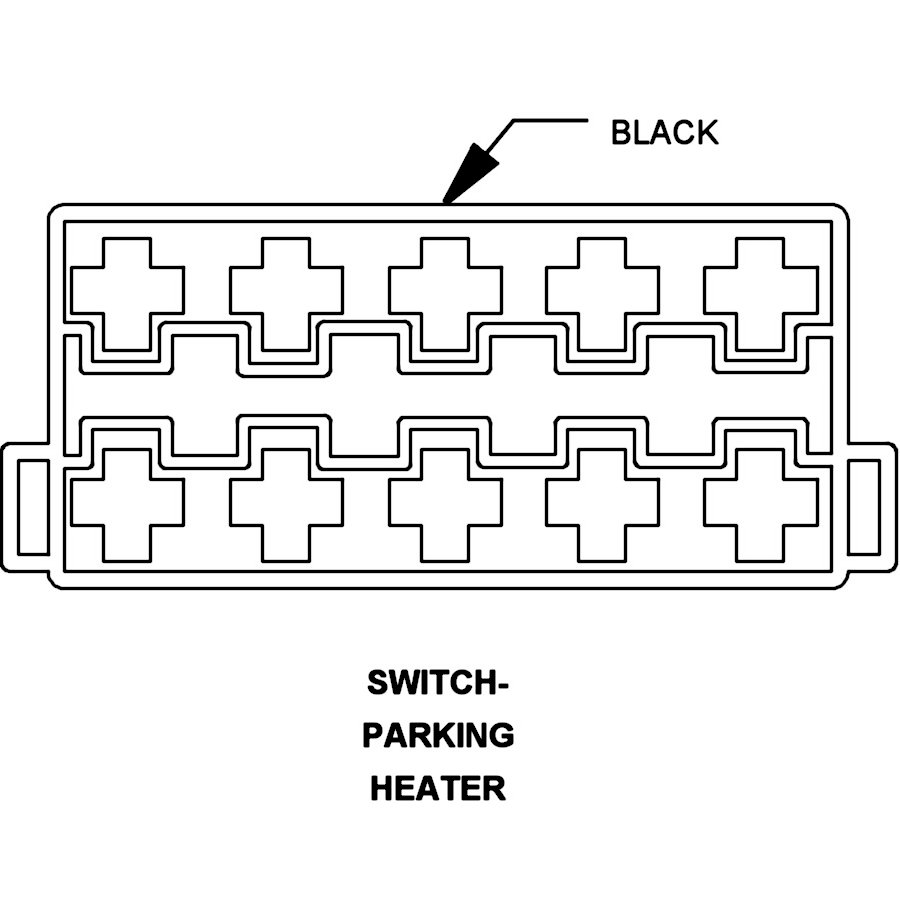

Component : SWITCH-PARKING HEATER

Connector:
Name : SWITCH-PARKING HEATER
Color : BLACK
# of pins : 10
Qualifier : (WITHOUT HEATER-RADIO SIGNAL RECEIVER)




Pin Description Circuit
1 TERM.58D U815 20GY/DB
2 - -
3 - -
4 - -
5 - -
6 - -
7 SWITCH-LED YELLOW 33 20VT/BK
8 - -
9 SWITCH-LED RED 32 20VT/DG
10 GROUND 2778 20BR
