Removal






REMOVAL




1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle.

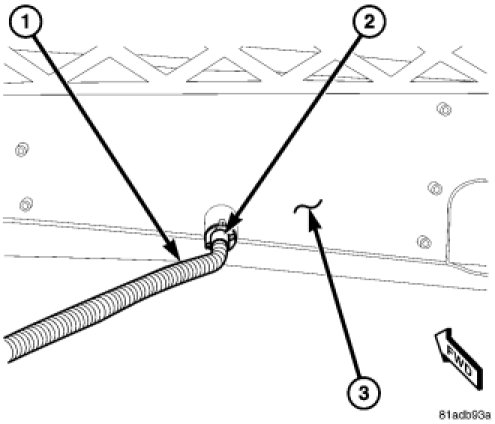

3. Remove the ambient air temperature sensor (2) from the back of the front fascia (3).
4. Disconnect the wire harness (1) from the ambient air temperature sensor and remove the sensor from the vehicle
