Installation

INSTALLATION

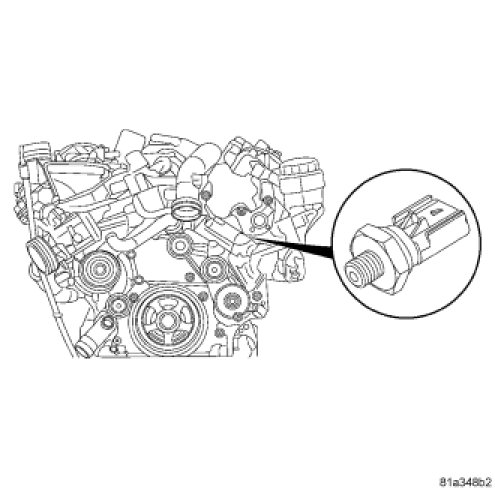

1. Install the engine oil pressure sensor to the engine. Torque sensor to 15 Nm (11 ft.. lbs.).
2. Connect engine oil pressure sensor electrical connector to the sensor.
3. Add engine oil and check engine oil level as needed.
4. Connect the negative battery cable.
5. Start vehicle and inspect for leaks.
