Removal - Dual Rear Wheel (DRW)

REMOVAL - DUAL REAR WHEEL (DRW)

NOTE: The tone wheel for single rear wheel (SRW) is integrated into the wheel hub/bearing assembly and not serviced separately.




1. Remove the hub/bearing assembly.

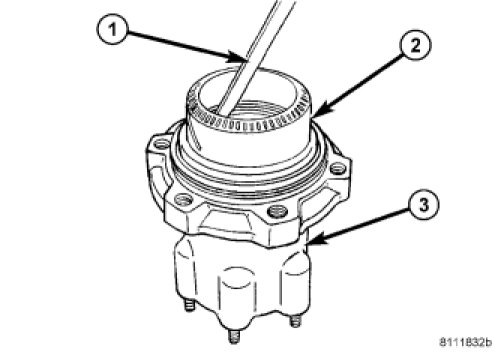

2. Insert a hooked prybar (1) between the hub/bearing and the inside of the tone wheel and pry upwards slightly and work your way around the tone wheel until the wheel is loose.
3. Remove the tone wheel (2).
