Steering Angle Sensor: Description and Operation






DESCRIPTION

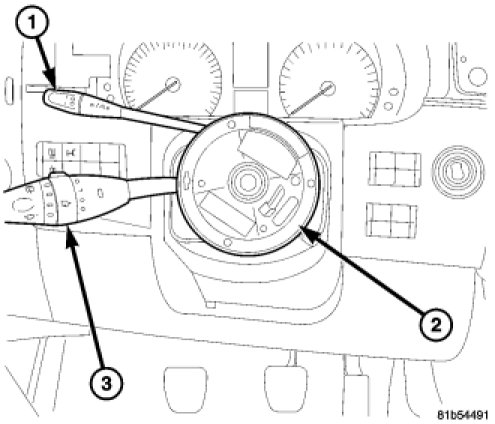

Internal and integral to the clockspring are the Steering Control Module (SCM) (also known as the steering column module/MRM) and the Steering Angle Sensor (SAS). The clockspring (2) must be replaced for a steering angle sensor failure.
